What: Audi TT Coupé RS4 Prototype
Model Family: TT (Mk1, type 8N)
Debuted: N/A
Year: 2001 or possibly 2004
Registration Plate: Unknown
Status: Audi Tradition collection
Number Produced: 1
Model / Generation Code(s): type 8N
Chassis / Matrix: PQ34
Engine: 2.7T V6 Biturbo, DOHC, 5-Valves per Cylinder
Displacement: 2.7-liter (2,671 cc)
Transmission: 6-speed manual
Power: 380 PS (280 kW) at 6,100 RPM
Peak Torque: unknown
Wheels: 8.5J x 18-inch 9-spoke
Tires: 255 35 ZR 18
Weight: 1,580 kg
Acceleration (0-100 km / 62 mph: 4.8 seconds
Top Speed: 250 km/h (electronically limited), 280 km/h unlimited
RELATED
Concept Cars:
Road Cars: TT (type 8N)
Race Cars:
SUMMARY
The Audi TT 2.7T Prototype is a one-off high-performance concept car engineered by quattro GmbH (now Audi Sport GmbH) in 2001. For decades the existence of this car remained one of the most obscure secrets within Audi’s performance division. Built as a technical feasibility study, it explored the idea of creating a top-tier RS-level variant of the first-generation Audi TT. Its construction incorporated significant structural changes, a full drivetrain transplant from the B5 RS 4, and bespoke chassis modifications that went far beyond typical concept-car development work. The prototype accumulated roughly 20,000 km during internal testing but was never shown publicly until the 30th anniversary celebration of quattro GmbH.
BACKGROUND & DEVELOPMENT
At the turn of the millennium, quattro GmbH had just launched its first full-blown RS model, the B5 RS 4 Avant, developed jointly with Cosworth Technology. Shortly afterward, the division began evaluating how to expand its high-performance portfolio. Audi’s TT Coupé, introduced in 1998, served as the brand’s core sports car, preceding the R8 by several years. According to quattro GmbH head of product development Stephan Reil, the team believed a high-performance TT could complement the RS 4 and broaden Audi’s presence in the sports-car segment.
At the time, Audi did not produce a modern inline-five suitable for high output, and the TT’s existing transverse platforms were limited to four-cylinder engines and, later, the narrow-angle VR6. To reach the performance threshold expected of an RS-level vehicle—above 350 hp—the team needed a longitudinal layout and a more capable powerplant. The solution was radical: use the B5 RS 4 itself as the mechanical donor and adapt the TT body to fit.
Development of the prototype occurred entirely within quattro GmbH’s technical facilities in Neckarsulm. Construction took approximately eight months. The car remained unpublicized during testing and was driven on public roads without disguise, its near-stock TT appearance effectively hiding the extensive engineering beneath.
ENGINEERING & CONSTRUCTION
CHASSIS INTEGRATION
Rather than modifying a production TT shell, quattro GmbH engineers began with the full floor assembly of the B5 RS 4. To match the TT’s shorter wheelbase, they removed a 170 mm section from the RS 4 platform directly ahead of the rear bulkhead. This re-dimensioned chassis allowed the TT body to be mounted on top with near-factory accuracy.
The approach preserved the RS 4’s structural hardpoints, suspension geometry, torsen-based quattro all-wheel-drive layout, and drivetrain alignment. It also ensured compatibility with the RS 4’s six-speed manual transmission, front and rear differentials, and high-capacity cooling system.
POWERTRAIN

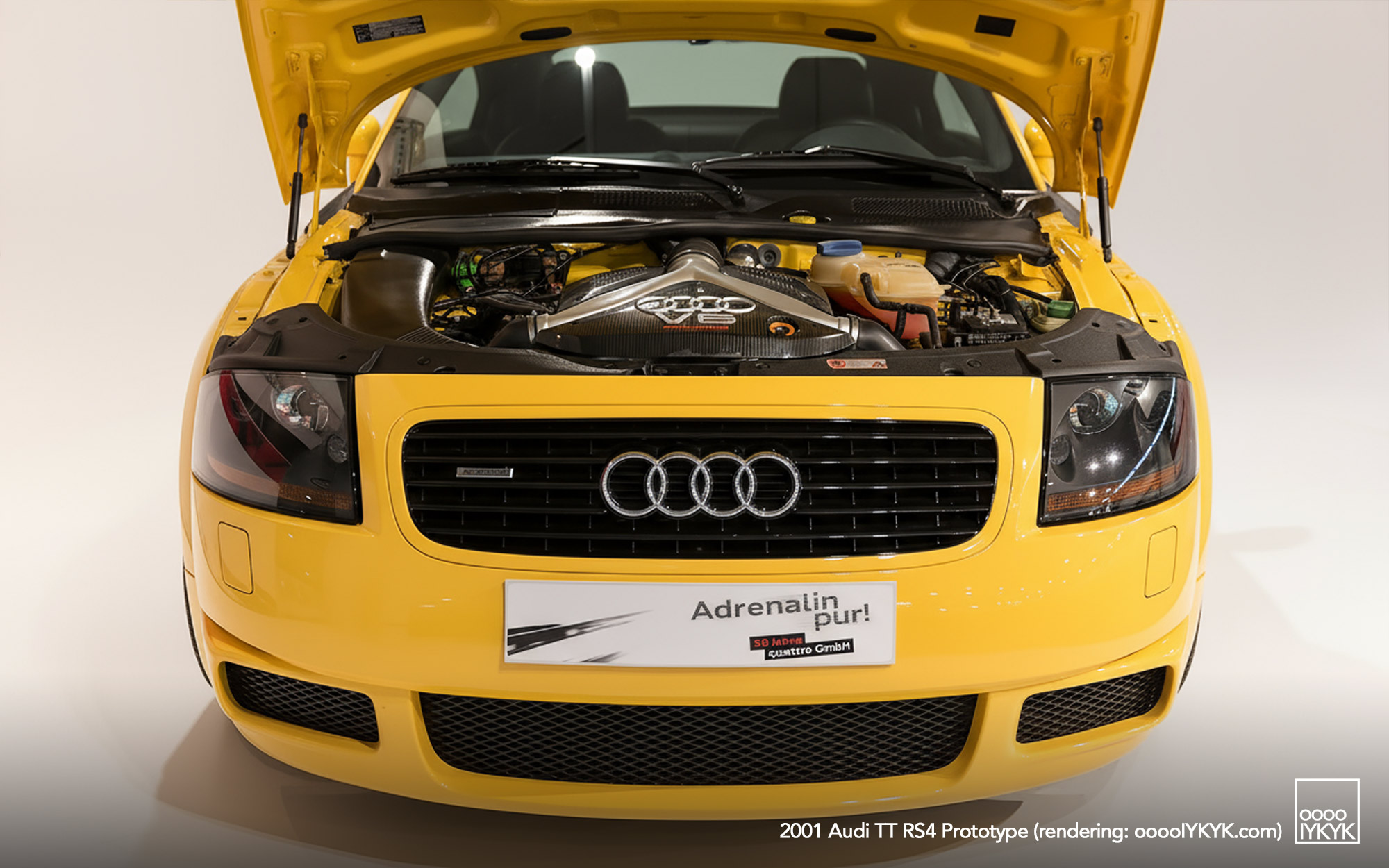

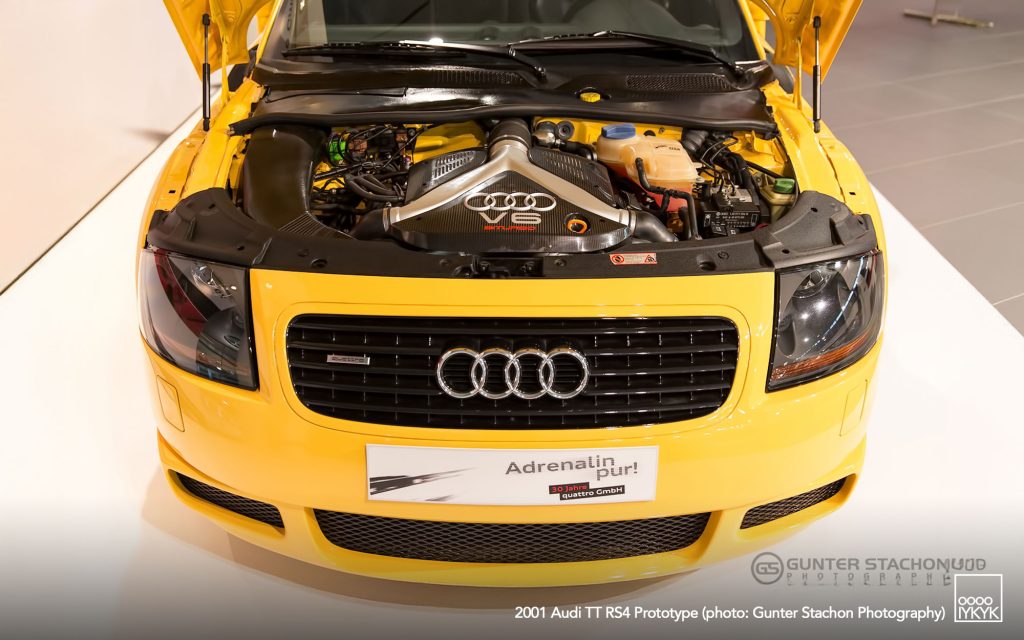

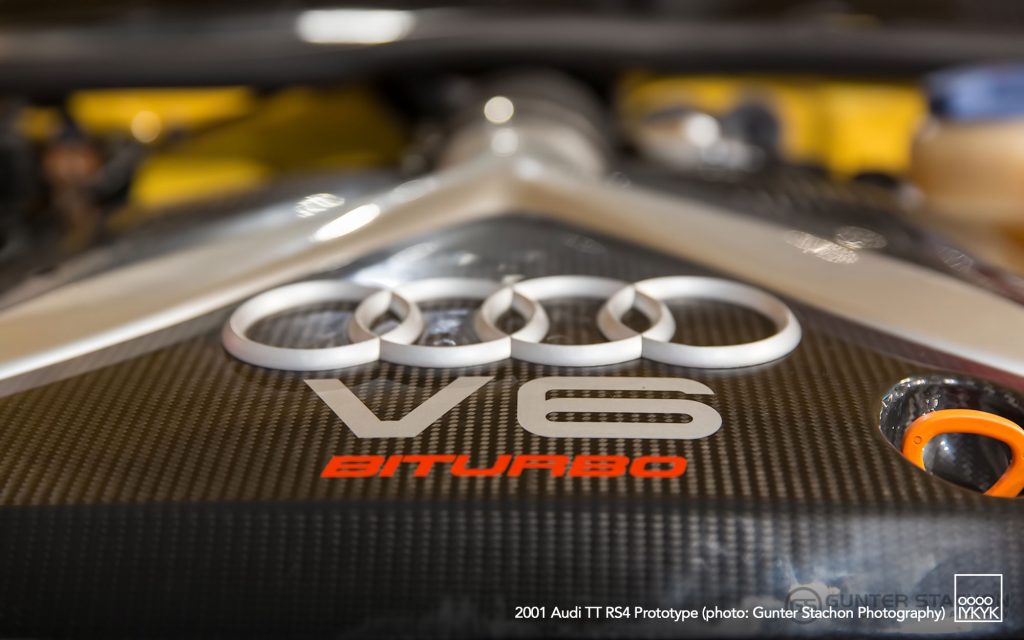

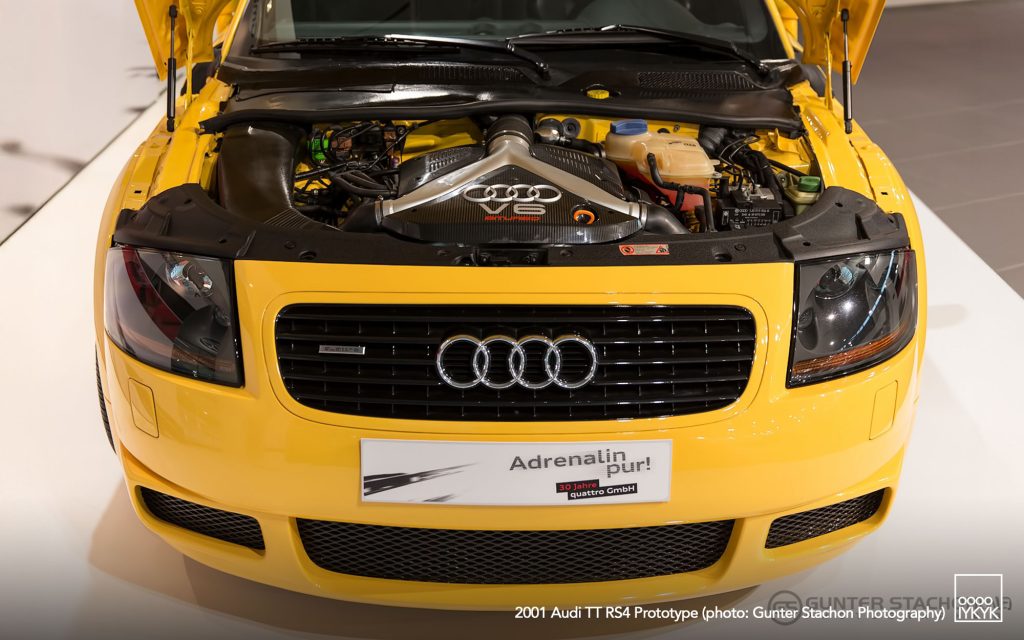

The prototype used the 2.7-liter twin-turbocharged V6 from the RS 4, a five-valve-per-cylinder DOHC design producing 380 hp (280 kW) and 440 Nm of torque. Unlike the production TT’s transverse engine arrangement, the prototype employed a longitudinal layout. This architecture eliminated packaging limitations and allowed complete transplantation of the RS 4’s intake plumbing, intercoolers, exhaust system, and driveline.
EXTERIOR MODIFICATIONS

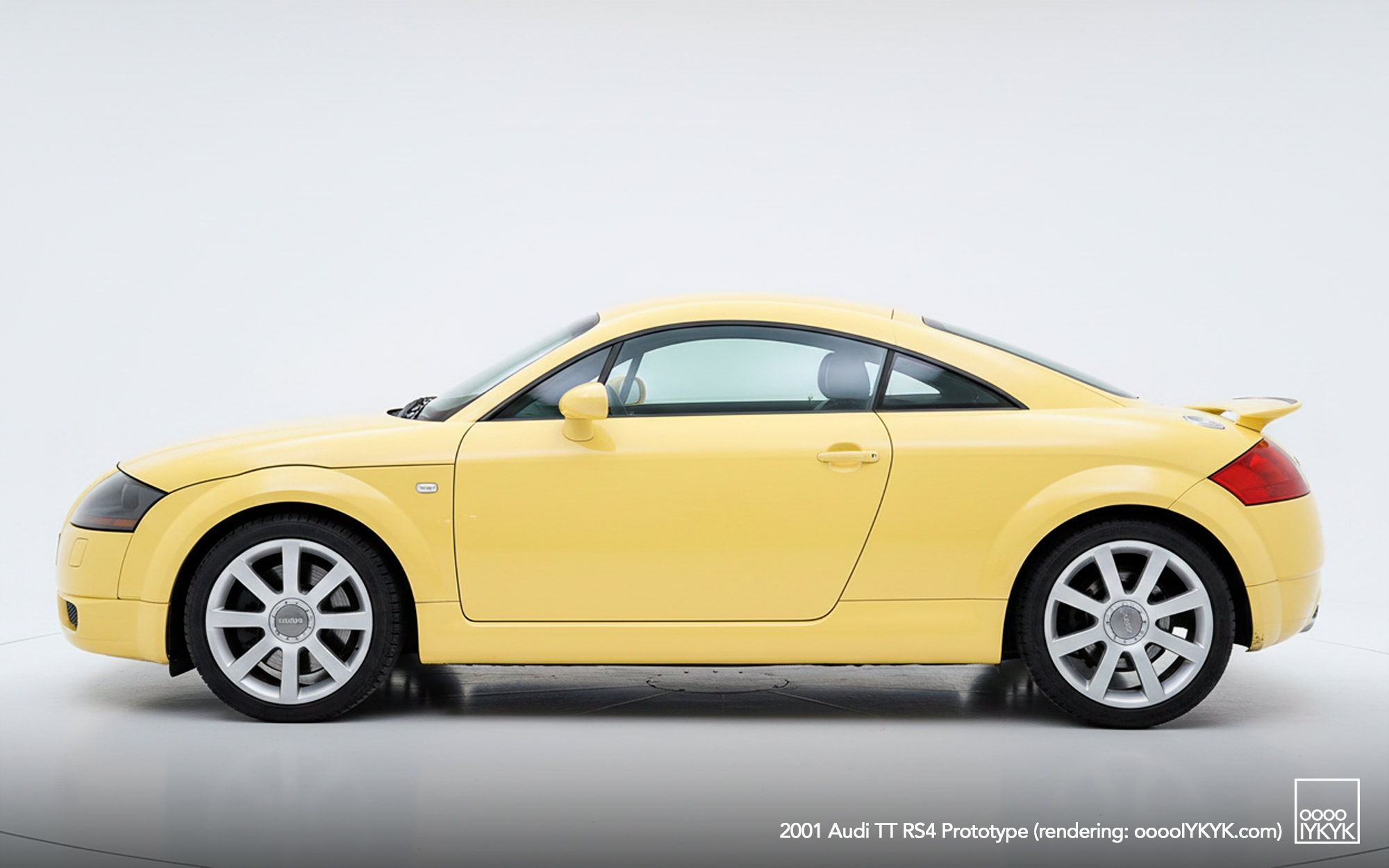

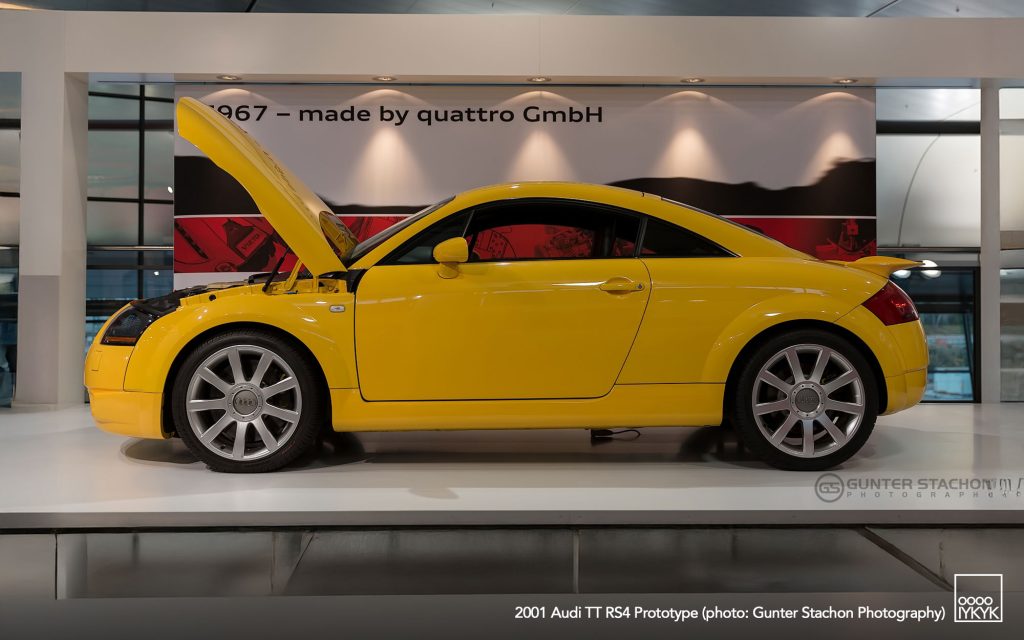

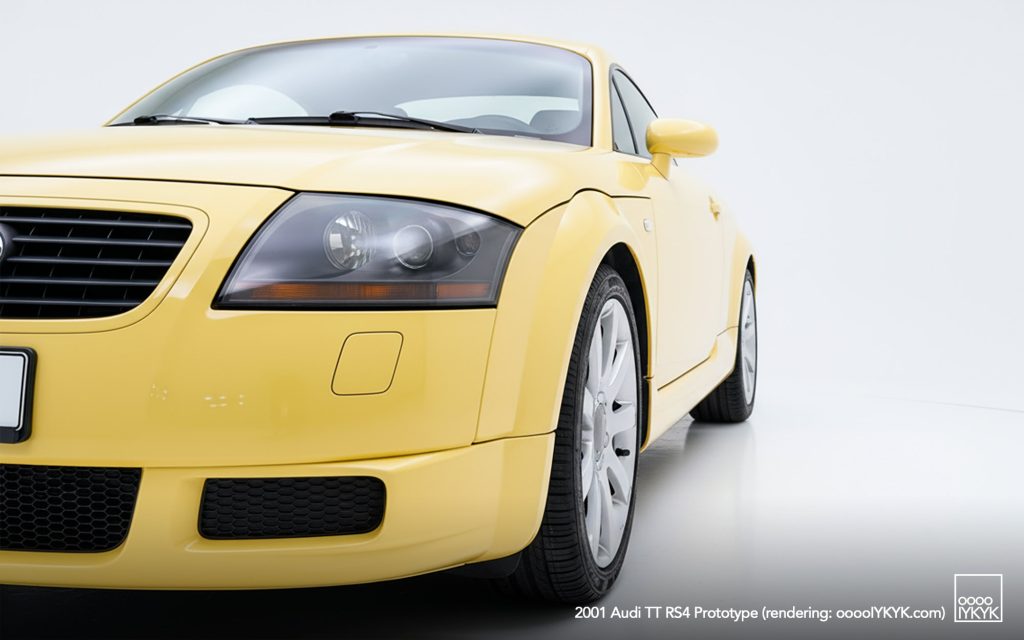

On the outside, the car appeared nearly identical to a first-generation TT. Only subtle deviations hinted at its unique nature:

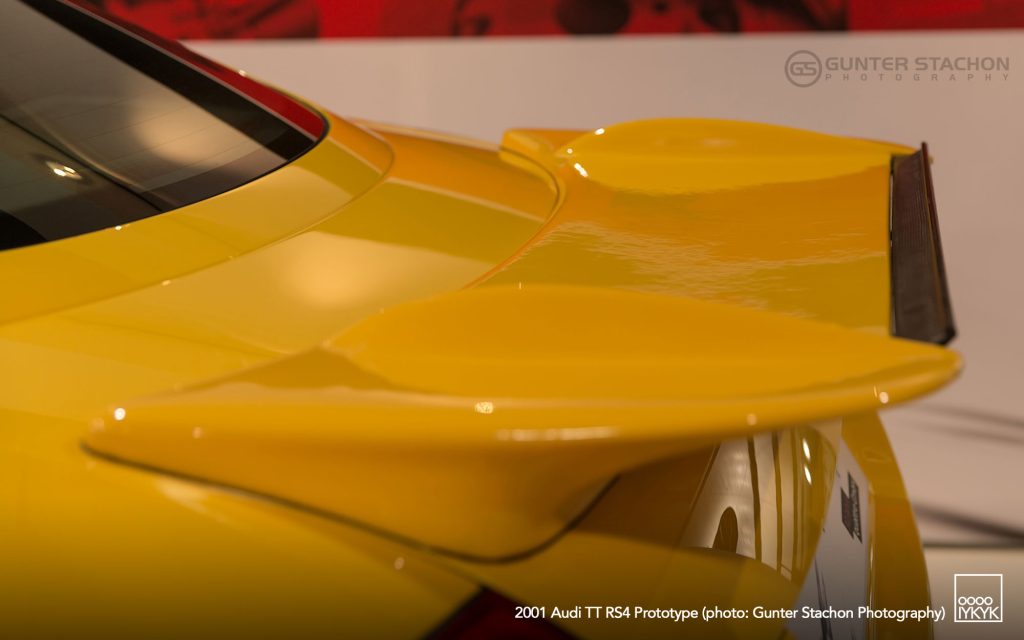

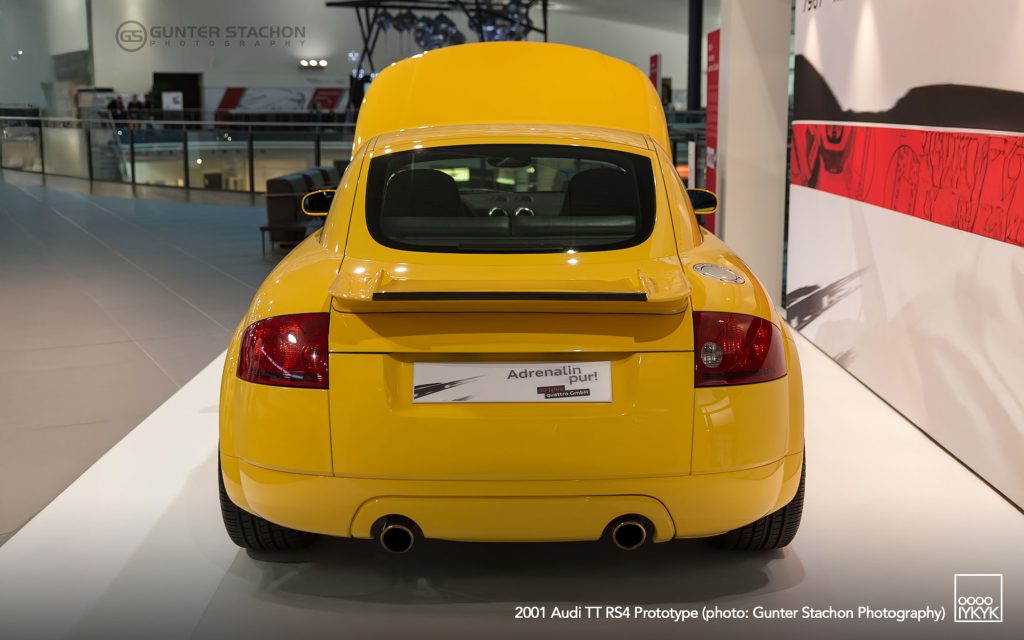

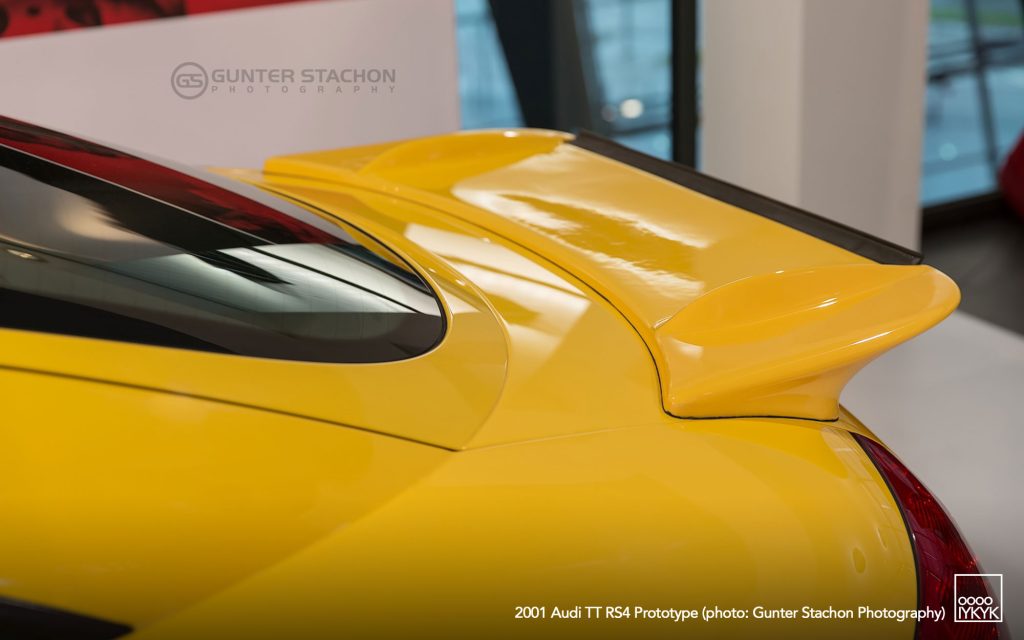

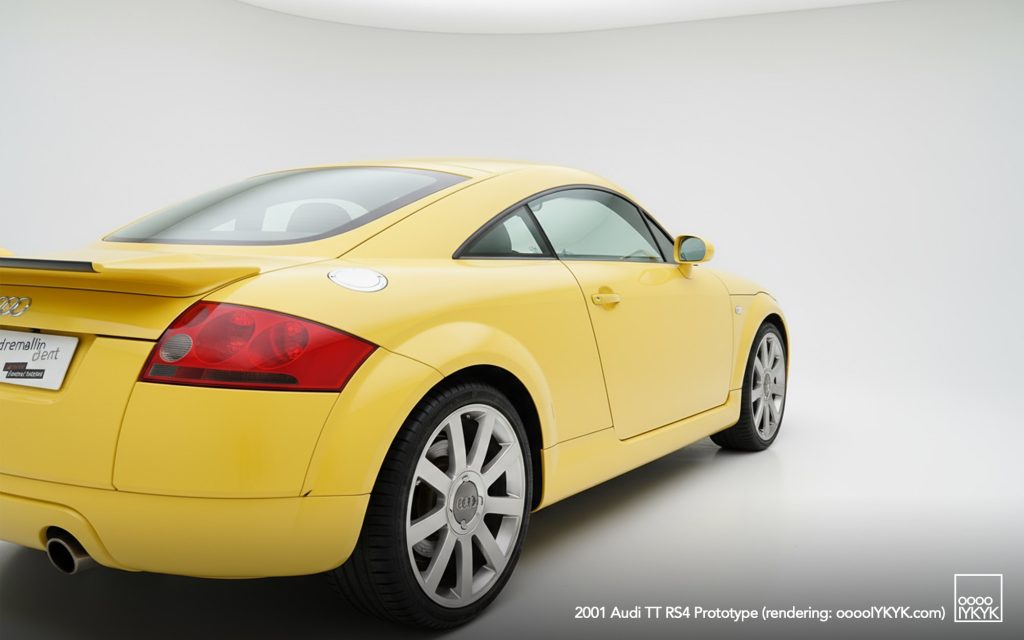

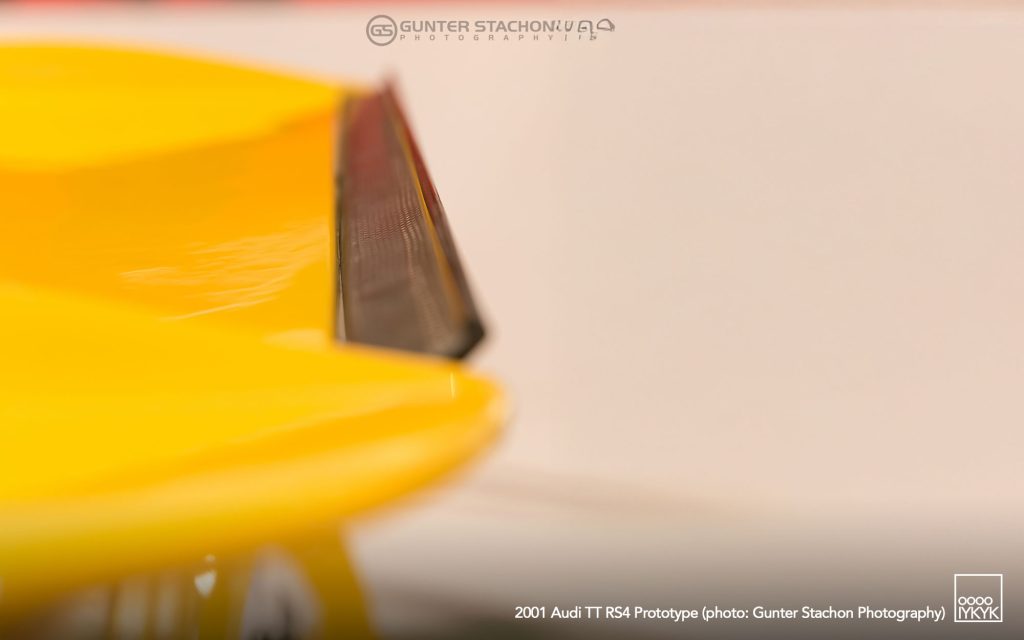

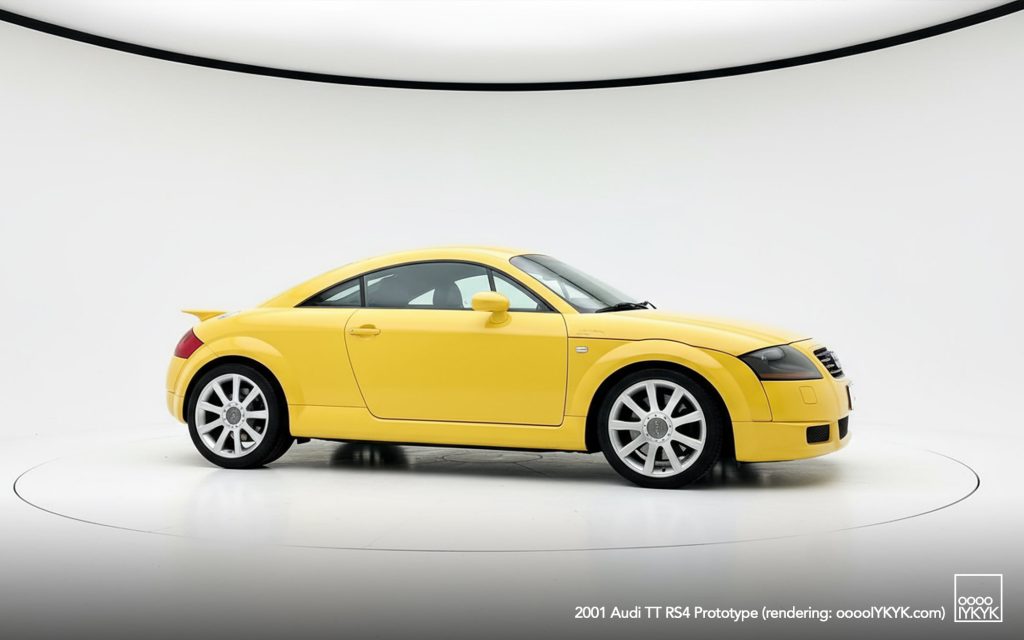

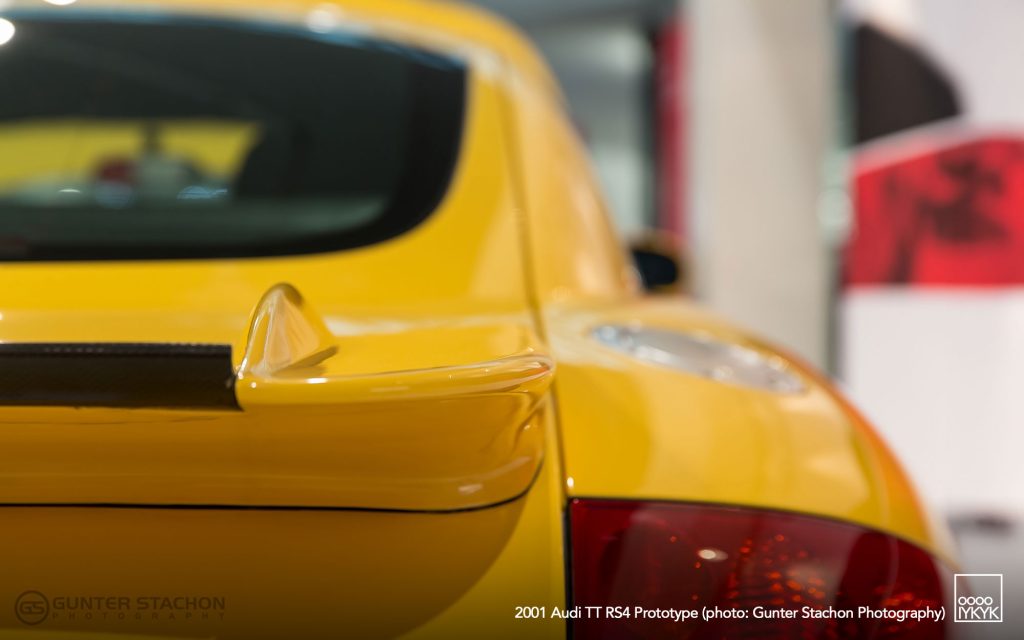

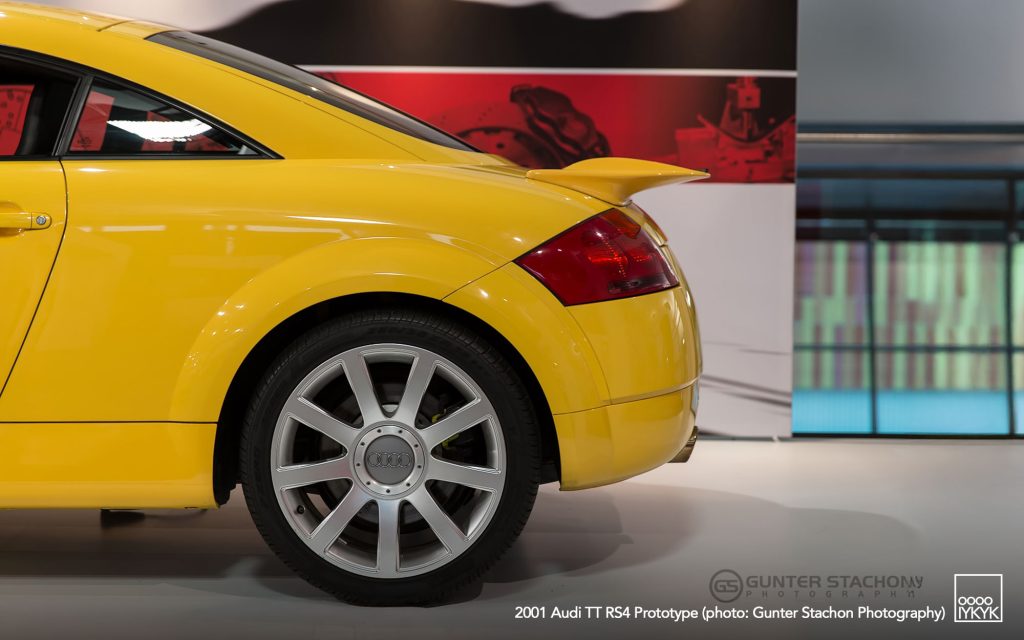

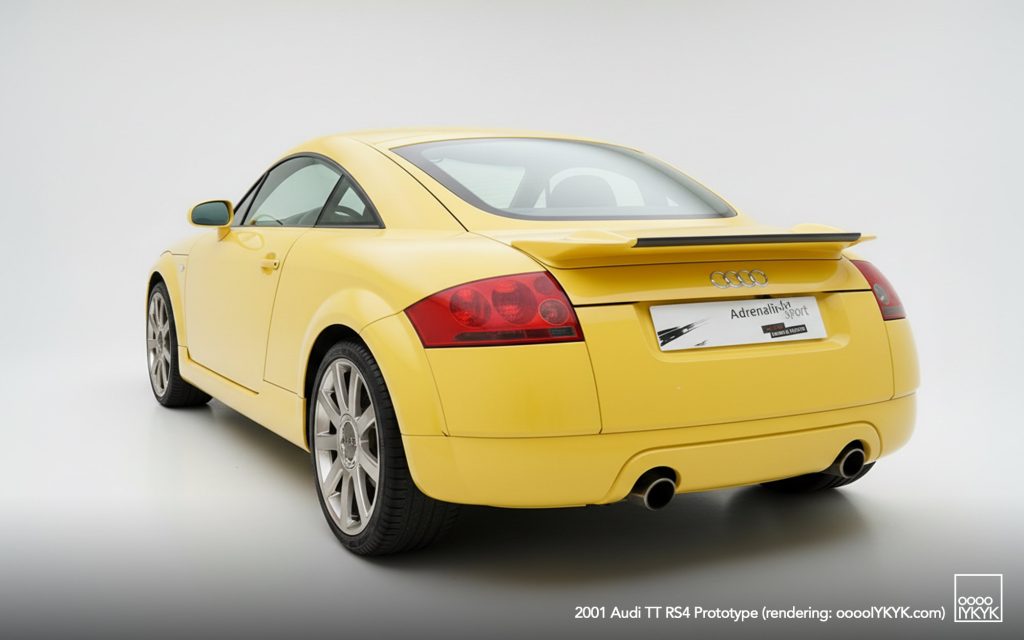

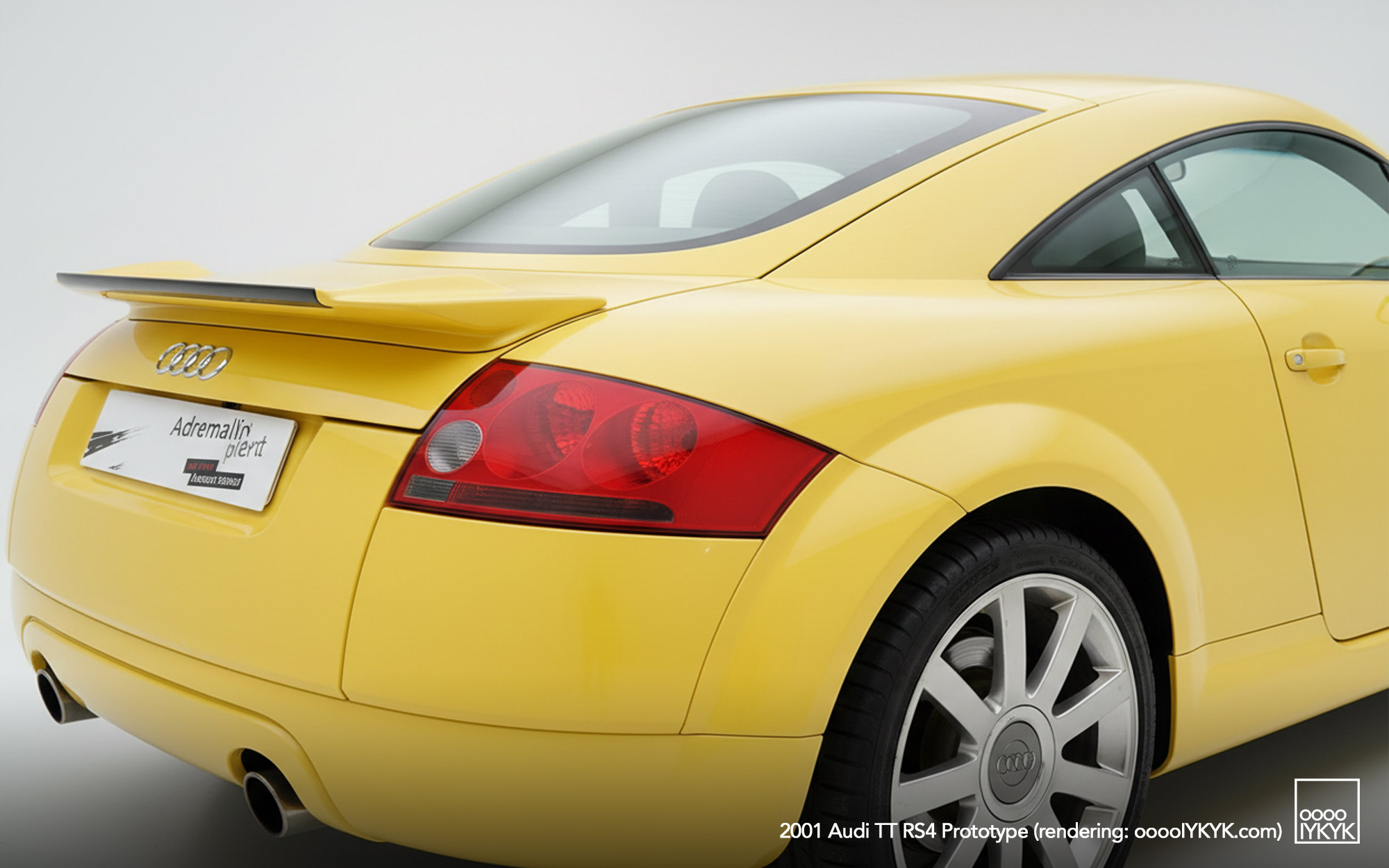

- A custom rear decklid spoiler designed for high-speed stability

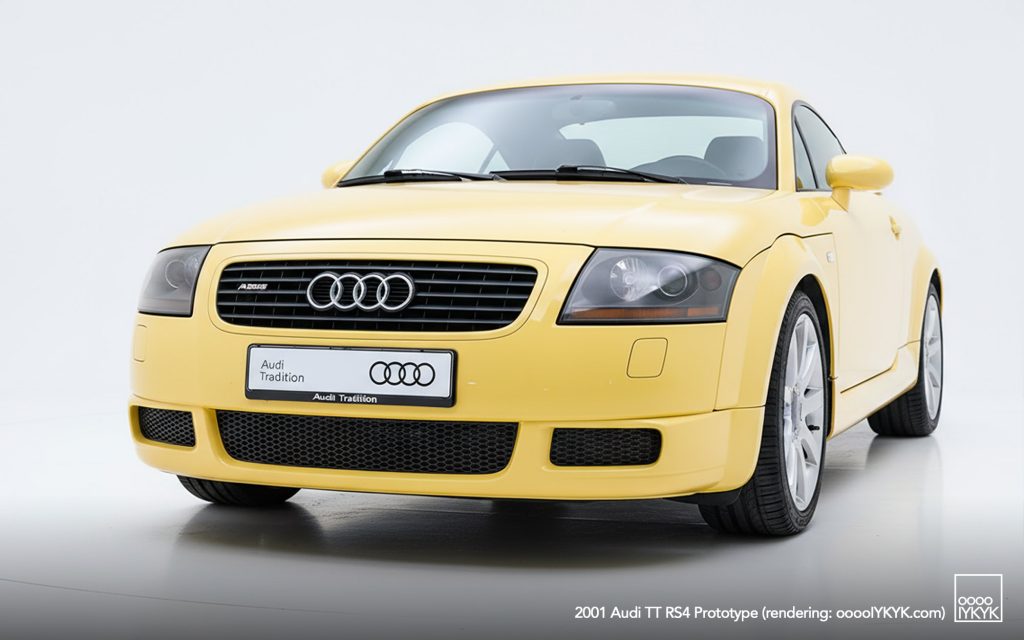

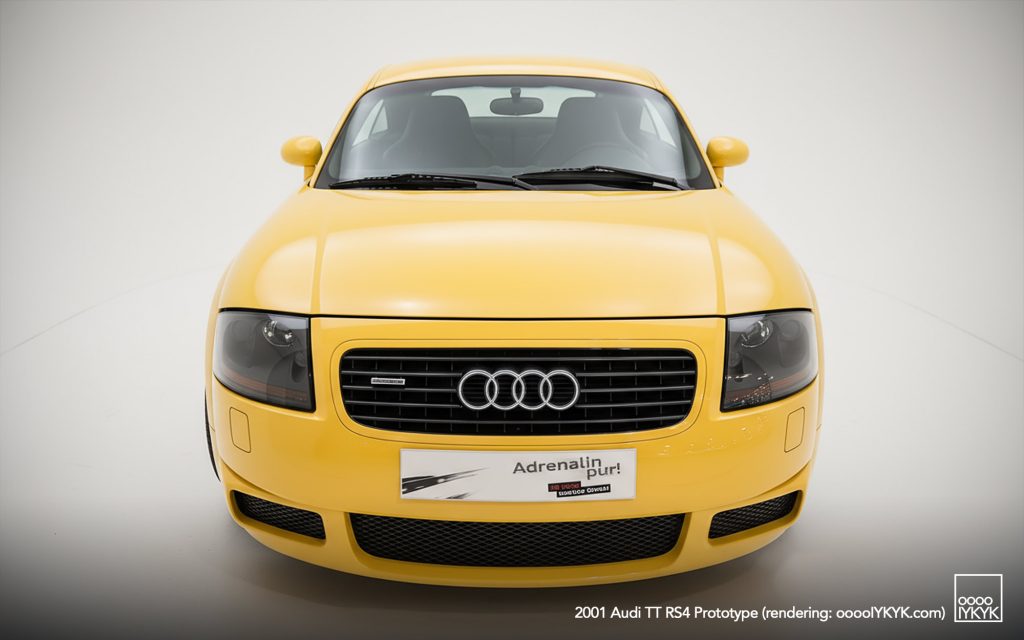

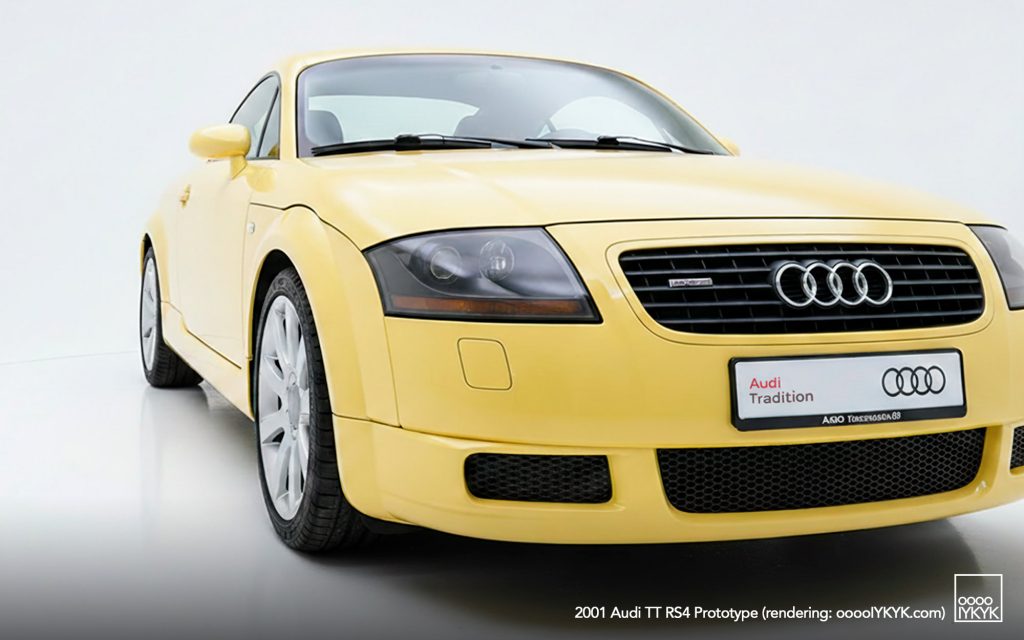

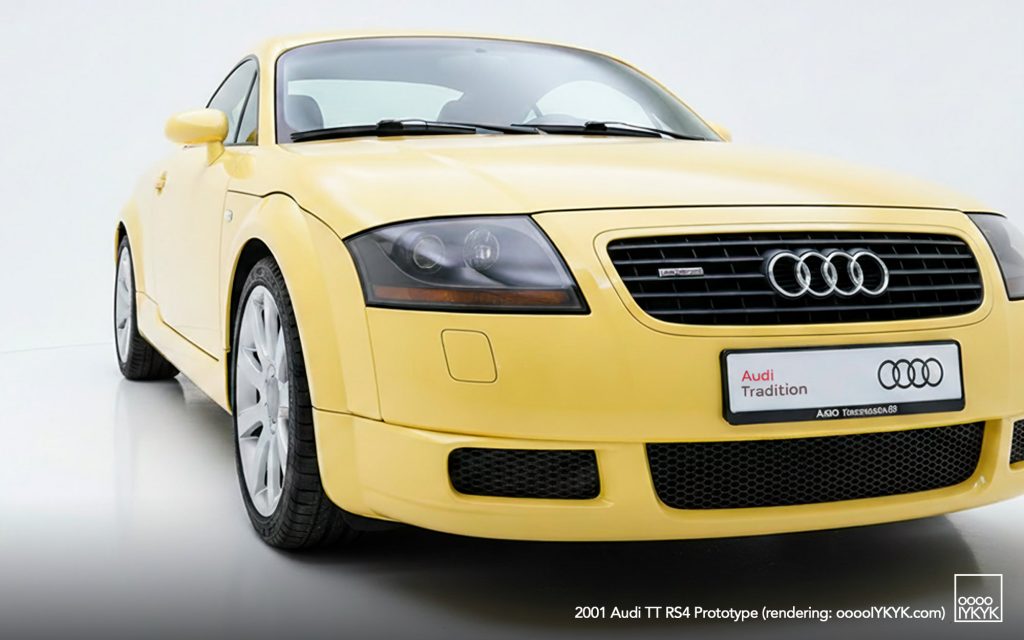

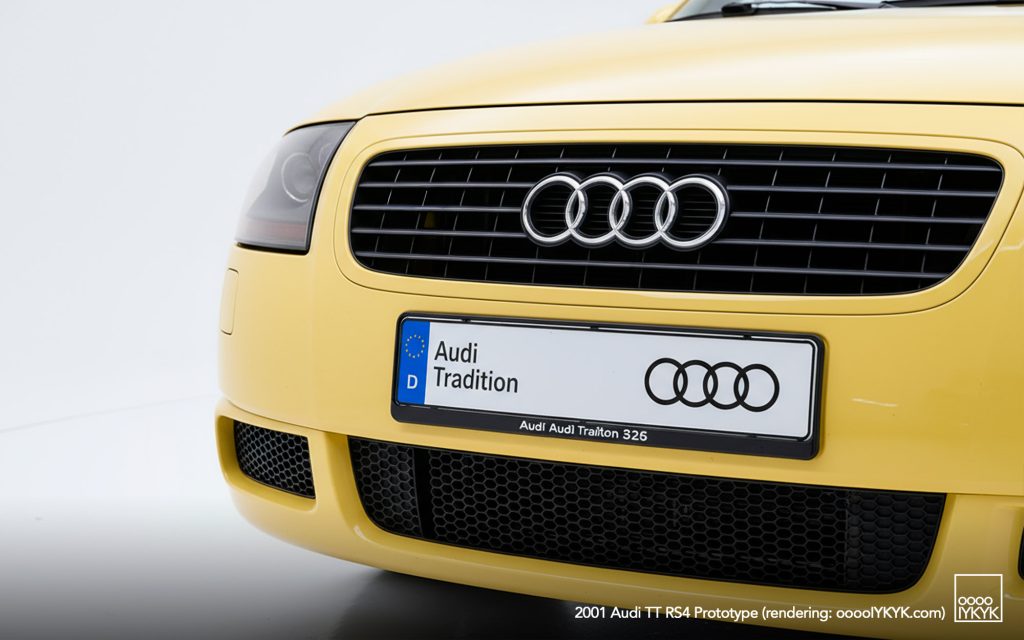

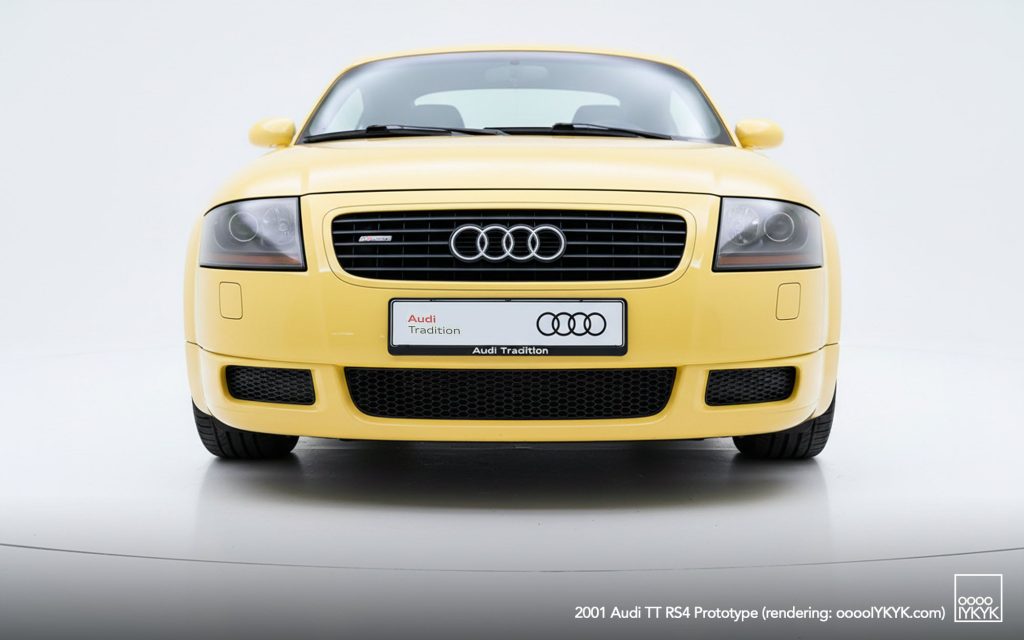

- A subtly reshaped front chin section for improved cooling and airflow
- Debadged bodywork that concealed its provenance

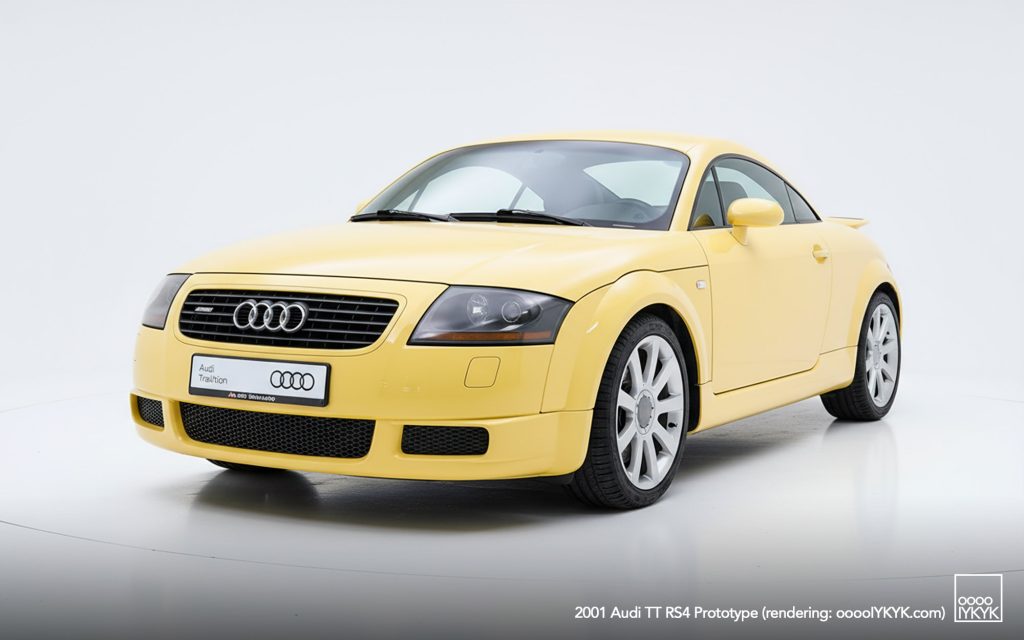

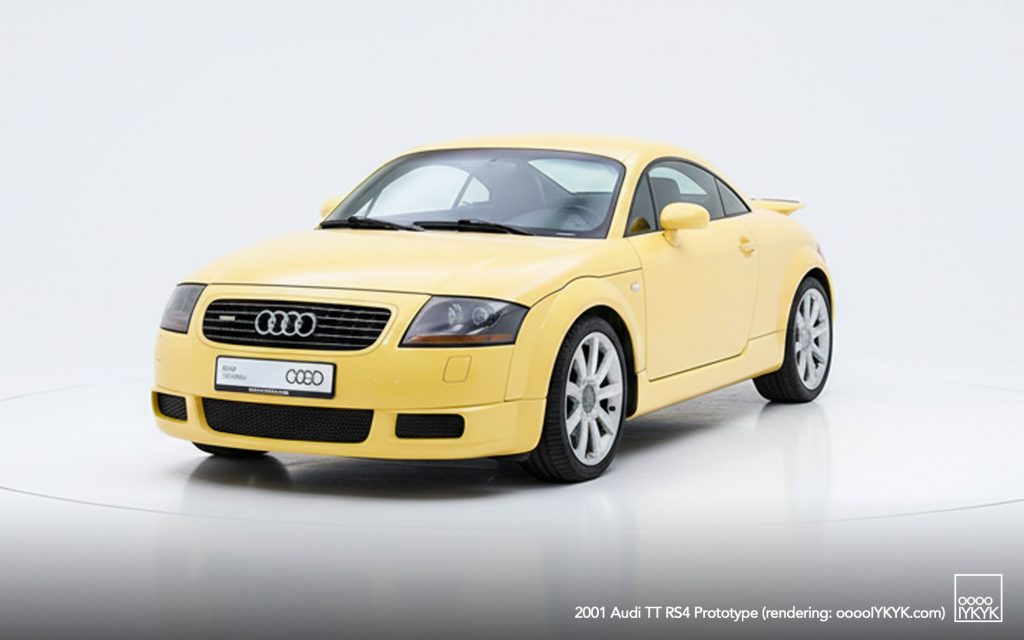

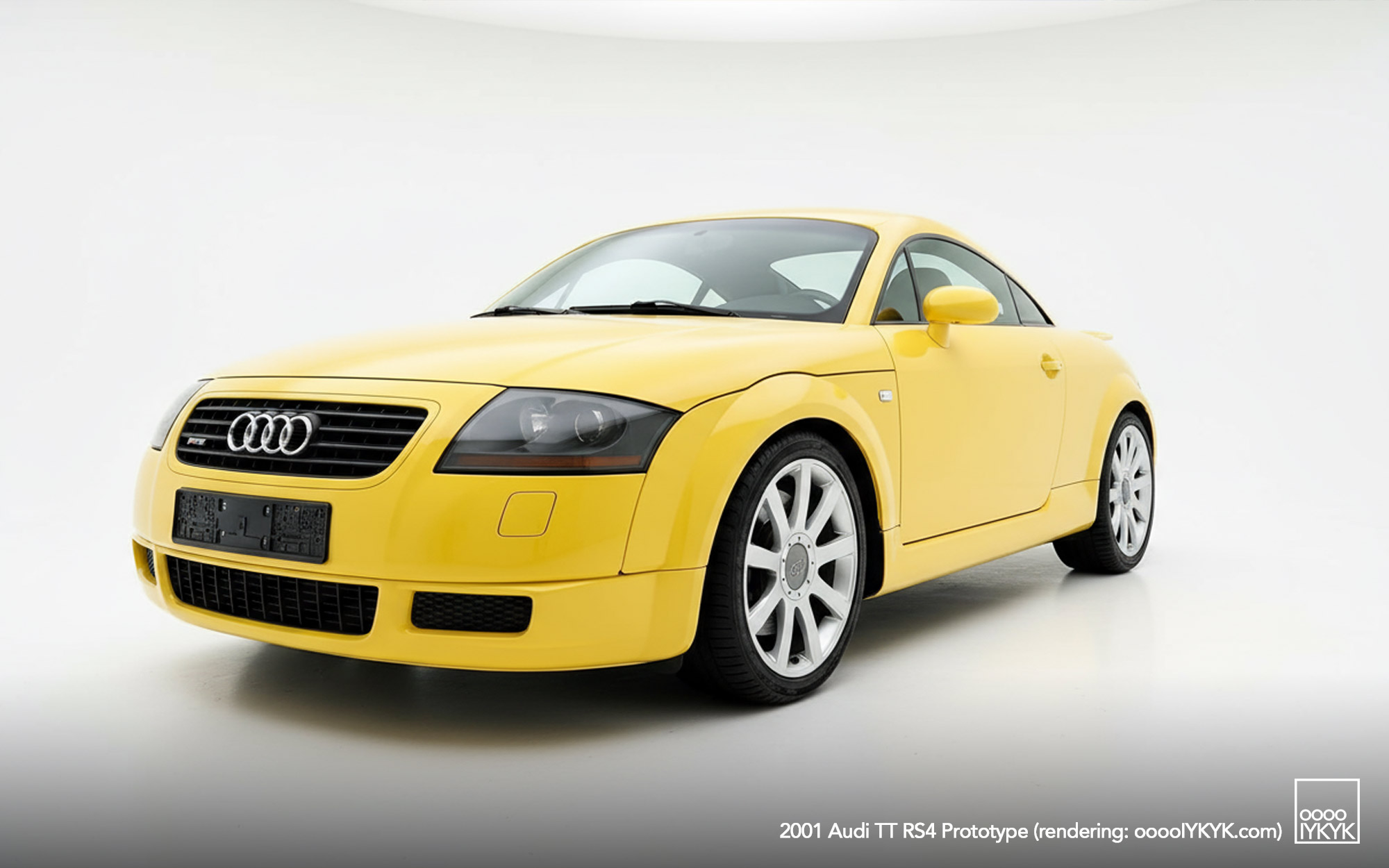

Finished in Imola Yellow, the prototype could easily be mistaken for a lightly modified TT 3.2, a characteristic that allowed seamless real-world testing without attracting public attention.
INTERIOR

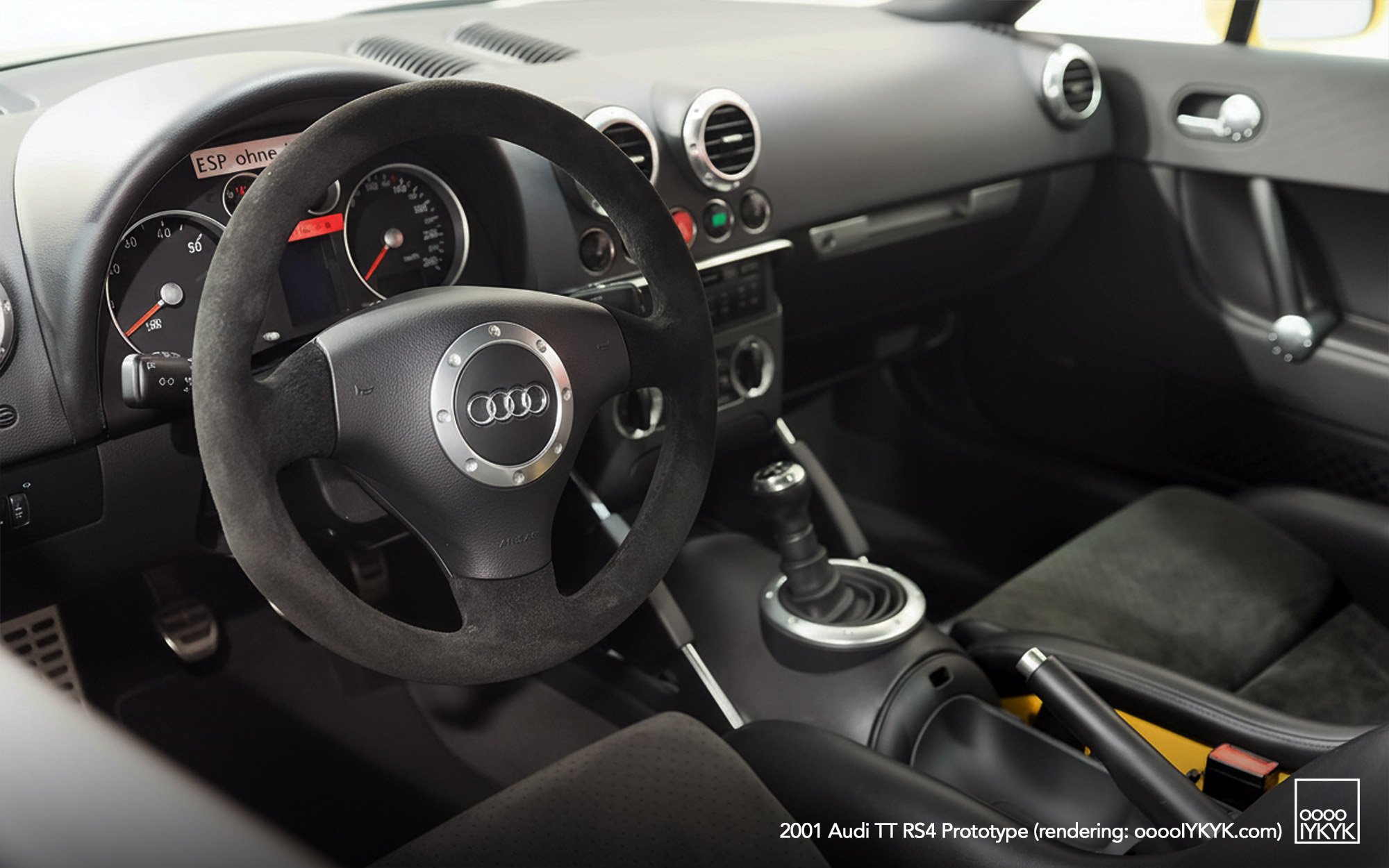

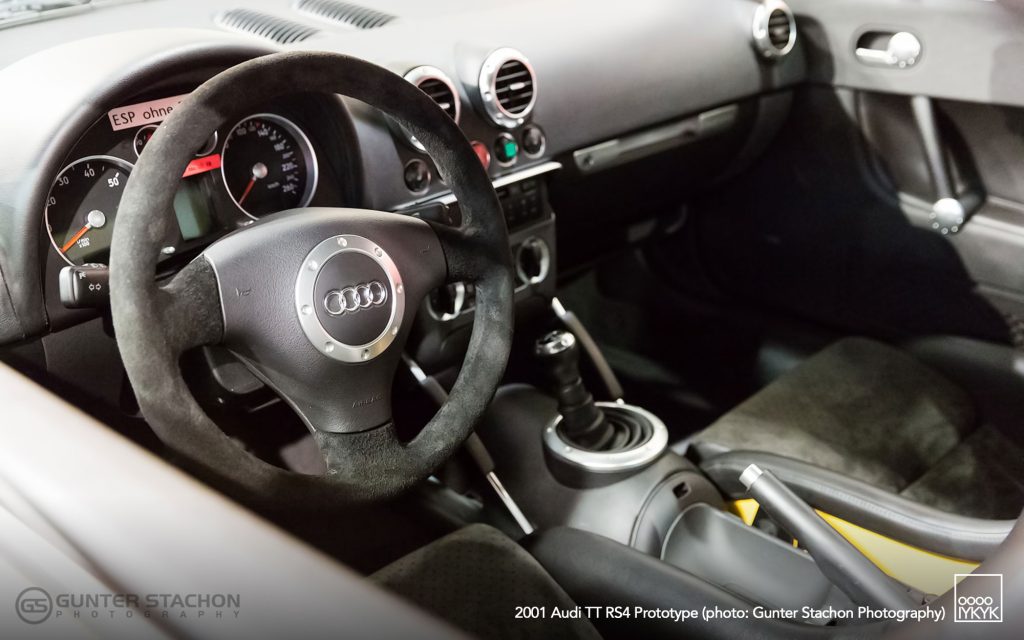

The interior retained the familiar design of the Mk1 TT, though several components came from quattro GmbH’s performance parts bin:
- Alcantara-wrapped steering wheel with TT aluminum airbag cover
- Alcantara Recaro racing seats similar to those used in the 2000 RS 4 Sport concept
- RS-grade instrumentation and minor trim upgrades
Despite its prototype status, fit and finish approached production-level quality.
TESTING & PERFORMANCE
According to Reil, the TT 2.7T prototype was “unbelievably fun to drive,” capable of outperforming contemporary Porsche 911 models. Over its operational period, it accumulated nearly 20,000 km during evaluation. These tests covered handling development, cooling performance, high-speed stability, and drivetrain durability.
Performance benchmarks include:
- 0–100 km/h: 4.8 seconds
- Top speed: approximately 295 km/h (183 mph)
- Curb weight: 1,580 kg
The combination of compact TT dimensions, RS 4 power, and quattro GmbH suspension tuning created a driving character unique in Audi history.
PROGRAM CANCELLATION
Despite successful testing, the prototype never progressed to production. Engineers concluded that merging the TT body with the modified RS 4 platform required an overly complex assembly process. Additional challenges included:
- Significant reengineering of crash structures
- Incompatibility with TT production tooling
- High manufacturing cost relative to projected low-volume output
As a result, Audi canceled the proposed small-series production run. The car was stored in a garage for more than a decade and a half, unseen by the public.
PUBLIC DEBUT

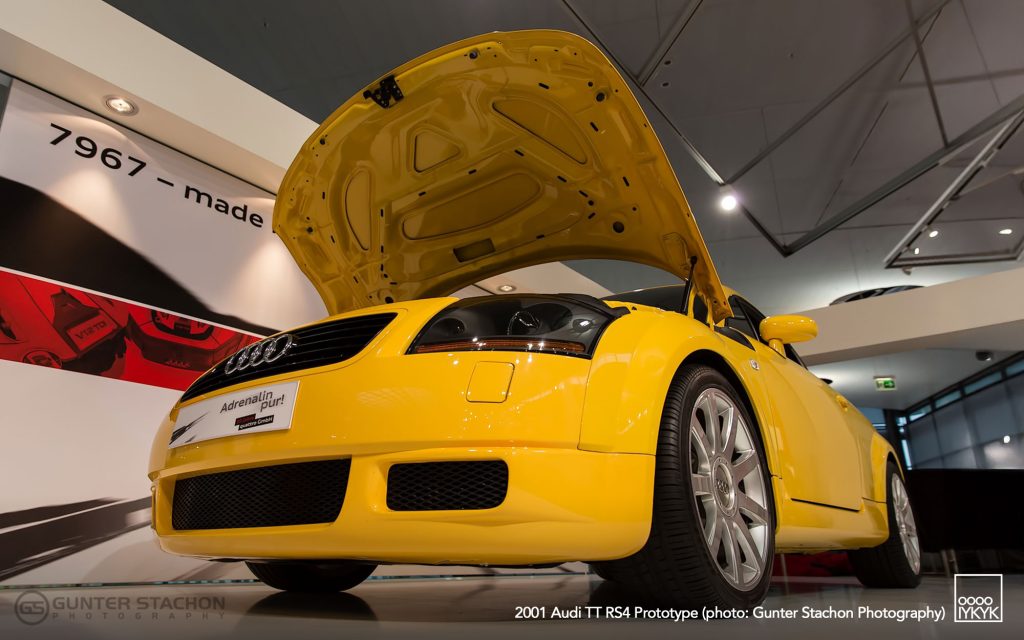

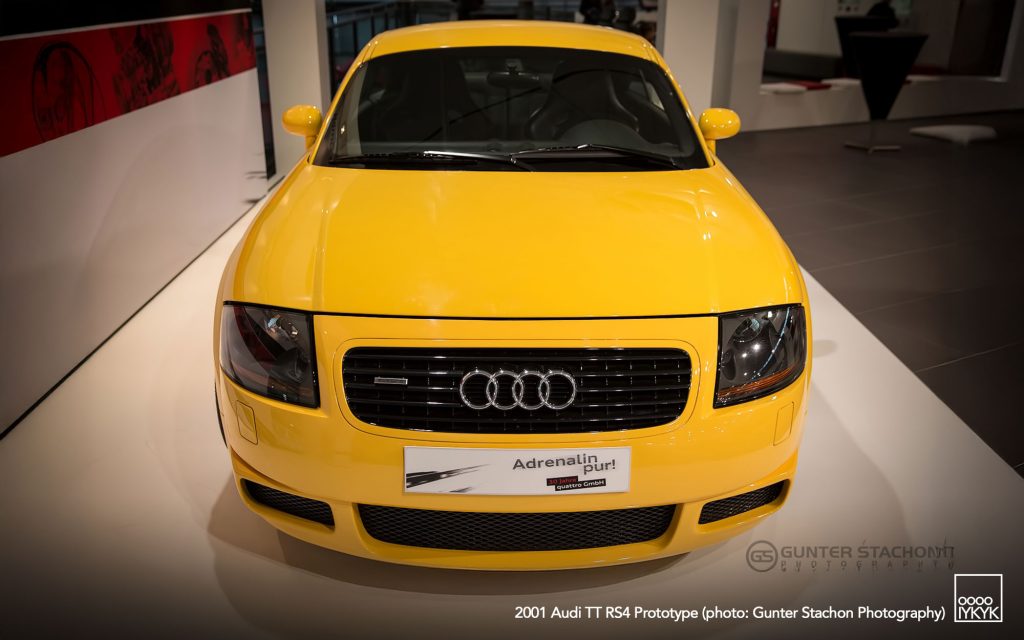

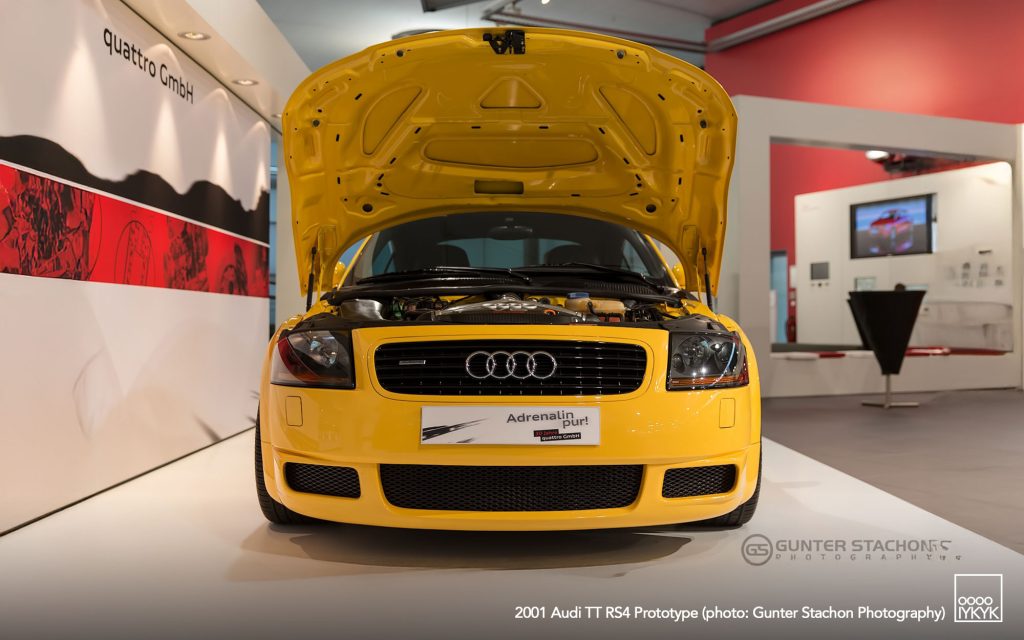

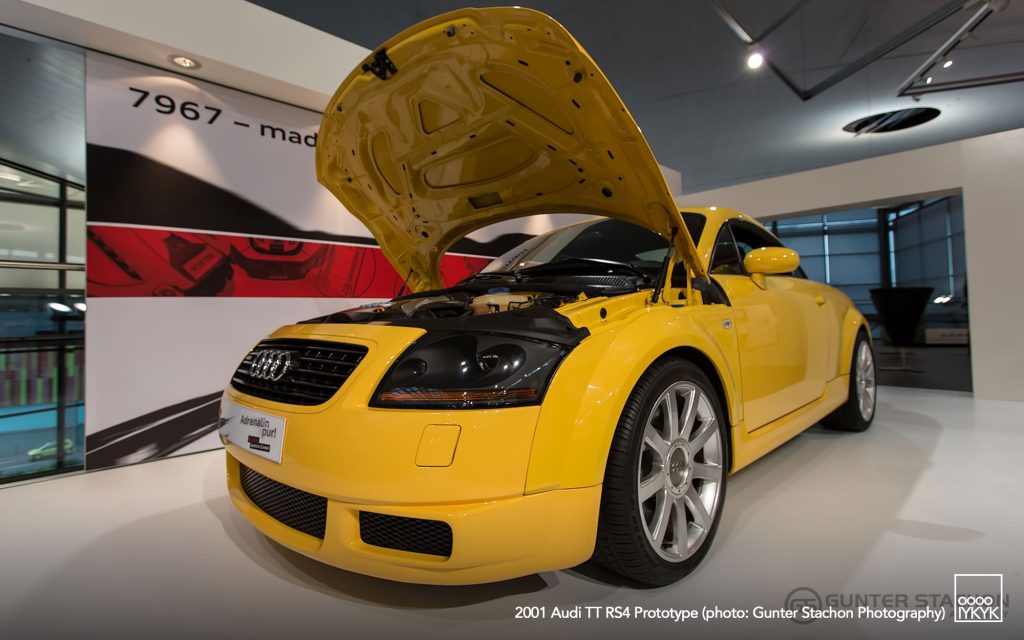

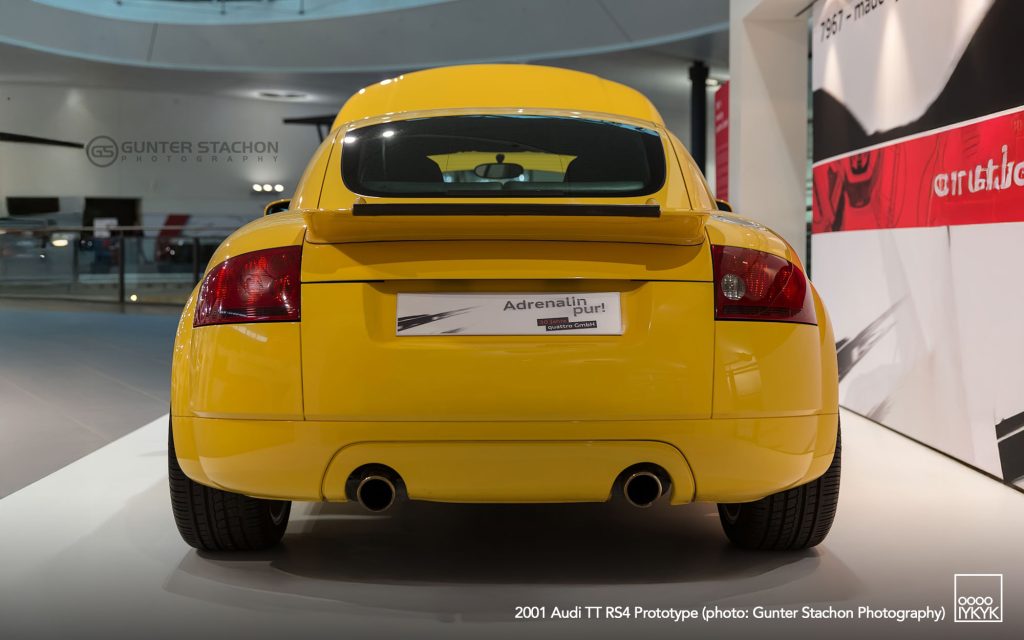

The prototype resurfaced in 2013 when Audi Sport GmbH celebrated its 30th anniversary. Presented at the Audi Forum Neckarsulm, it appeared for the first time as part of an exhibition highlighting the division’s hidden development history. The car’s reveal surprised even well-versed TT historians and long-time Audi enthusiasts, many of whom were unaware of its existence.

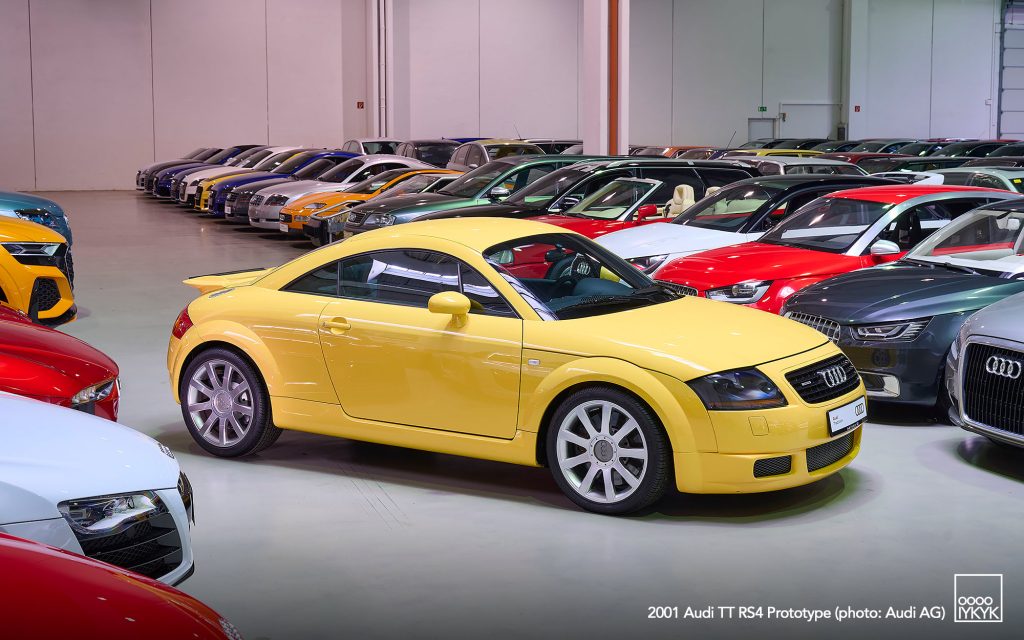

In a more recent display of the vehicle on loan from Audi Tradition, the car is listed as a 2004, even though its original information at Neckarsulm in 2013 suggested it was a 2001.
LEGACY
The Audi TT 2.7T Prototype remains a singular example of quattro GmbH engineering ambition during a formative era. It illustrates the division’s willingness to challenge platform norms, pursue unconventional solutions, and build fully functional test vehicles far beyond typical concept-car boundaries.
Though never intended for series production, the prototype stands today as an important artifact of Audi’s performance heritage—a reminder that the path to models like the TT RS and the R8 was paved with bold, experimental projects that rarely saw the light of day.
TECHNICAL SPECIFICATIONS
Engine: 2.7-liter V6 DOHC biturbo, 5 valves per cylinder
Power Output: 380 hp (280 kW) at 6,100 rpm
Torque: 440 Nm at 2,500 rpm
Drivetrain: Longitudinal layout, 6-speed manual transmission, permanent quattro all-wheel drive
Platform: Modified B5 RS 4 floor assembly with 170 mm wheelbase reduction

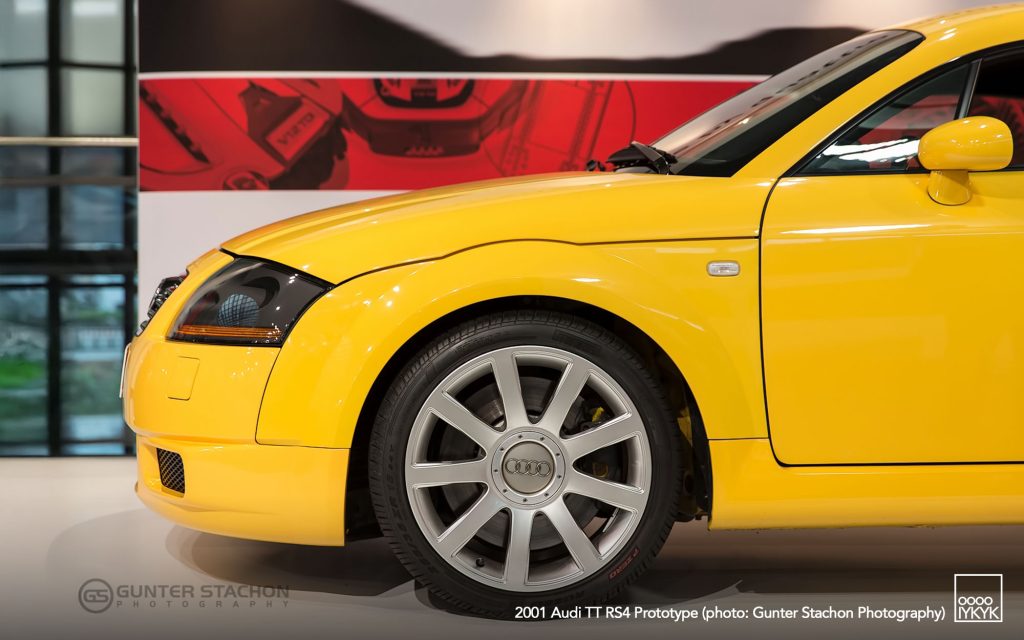

Wheels/Tires: 8.5J x 18 9-spoke RS 4 wheels, 255/35 ZR19 tires
0–100 km/h: 4.8 seconds
Top Speed: ~295 km/h (183 mph)
Curb Weight: 1,580 kg
Construction Period: 2001
Number Built: 1
