/ Eras / Auto Union Postwar / 1000
MODEL DETAILS
What: Auto Union 1000 Universal
Era: Auto Union Postwar Automobiles
Manufacturer: Auto Union GmbH (West Germany)
Model Family: 1000
Market / Zone: West Germany; export markets
Model Years: 1958, 1959, 1960, 1961, 1962, 1963
Production (Universal): c. 1959–1962
Number Produced:
Model / Generation Code(s):
Chassis / Matrix:
TECHNICAL DETAILS
Body Style(s): 3-door estate / wagon (“Universal”); 4 seats
Drivetrain Configuration: longitudinal front engine, front-wheel drive
Engine(s): 981 cc inline 3-cylinder, two-stroke; 74.0 × 76.0 mm; compression ratio 7.25:1
Engine Structure: ported two-stroke; cast iron cylinder head and block; Bing carburetor; water cooled
Power Output: 33.3 kW (44.6 bhp) @ 4,500 rpm
Torque: 47.7 Nm @ 2,250 rpm
Transmission(s): 4-speed manual with freewheel; spiral bevel final drive (3.87)
Steering: rack and pinion
Brakes: hydraulic drum brakes; single braking circuit
Fuel Tank Capacity: 44.6 L (11.8 US gal / 9.8 Imp gal)
Wheelbase: 2,350 mm (92.5 in)
Front Track: 1,290 mm (50.8 in)
Rear Track: 1,351 mm (53.2 in)
Length: 4,227 mm (166.4 in)
Width: 1,697 mm (66.8 in)
Height: 1,468 mm (57.8 in)
Ground Clearance: 190 mm (7.5 in)
Turning Circle: 11.2 m (36.9 ft)
Kerb Weight: approx. 900 kg
Top Speed: 129 km/h (80 mph)
0–100 km/h: 24.2 seconds
Fuel Consumption (test): 28 mpg (10.1 L/100 km)
CHASSIS DETAILS
Construction: separate chassis with steel bodywork
Front Suspension: independent; lower wishbones; upper transverse semi-elliptic spring
Rear Suspension: dead axle; transverse semi-elliptic spring; telescopic dampers
OTHER DETAILS
Predecessor: DKW 3=6 (Universal variants)
Successor line: DKW F102
Platform Mates: Auto Union 1000; Auto Union 1000 SP; Auto Union 1000 S Coupé de Luxe
Concept Cars:
Assembly Location(s): Düsseldorf; Ingolstadt
Designer(s):
Homologations:
WHEEL / TIRE DETAILS
Wheel Diameter(s): 15 in
Tire Size(s): 5.60 × 15
Bolt Pattern:
Offset:
SUMMARY
DESIGN & BODY STYLE

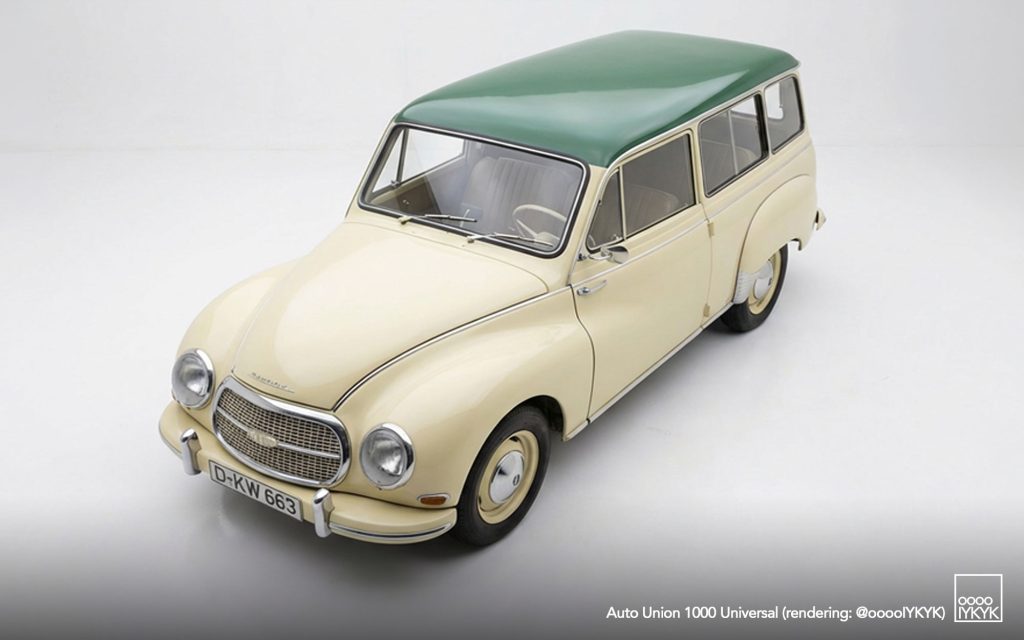

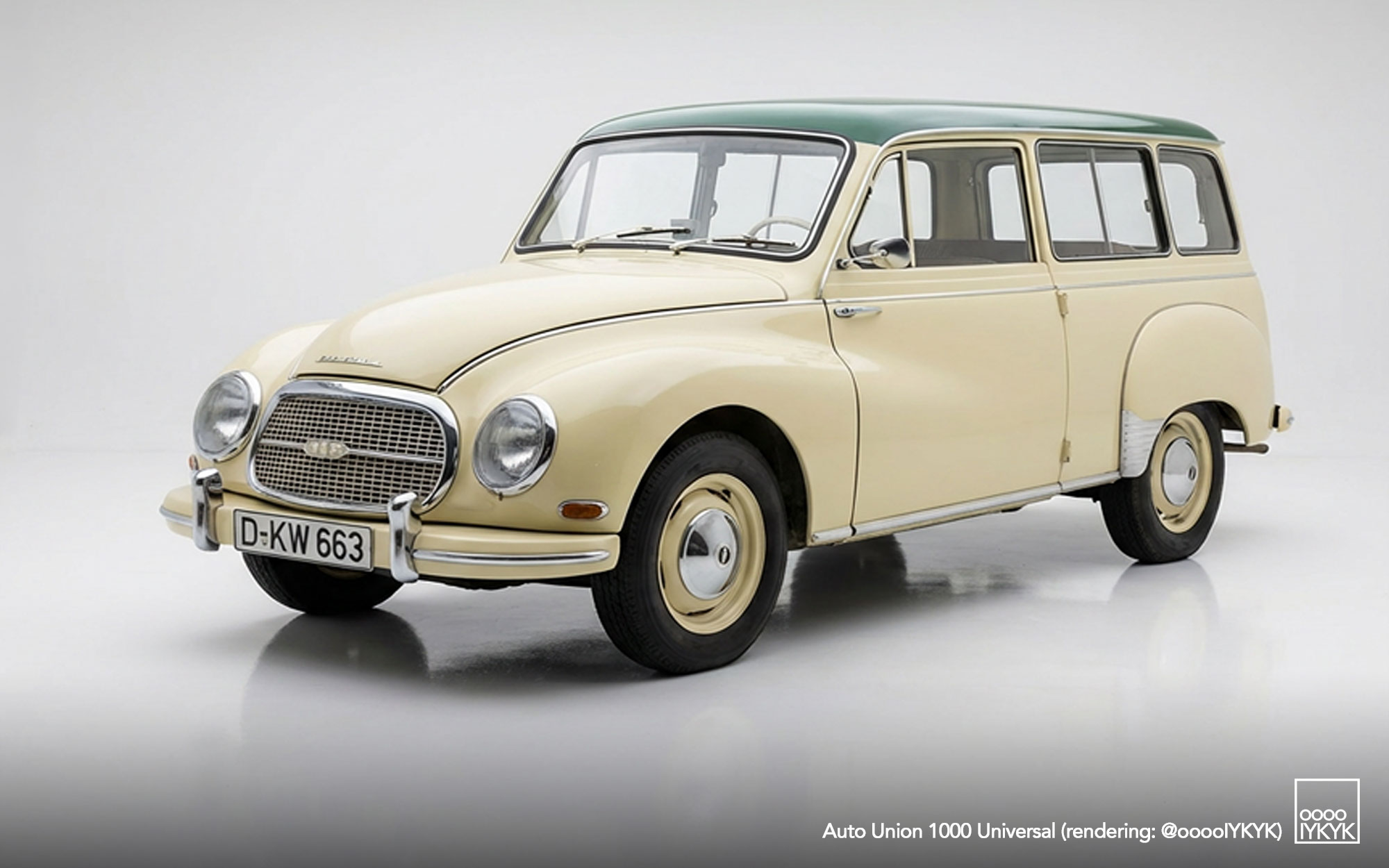

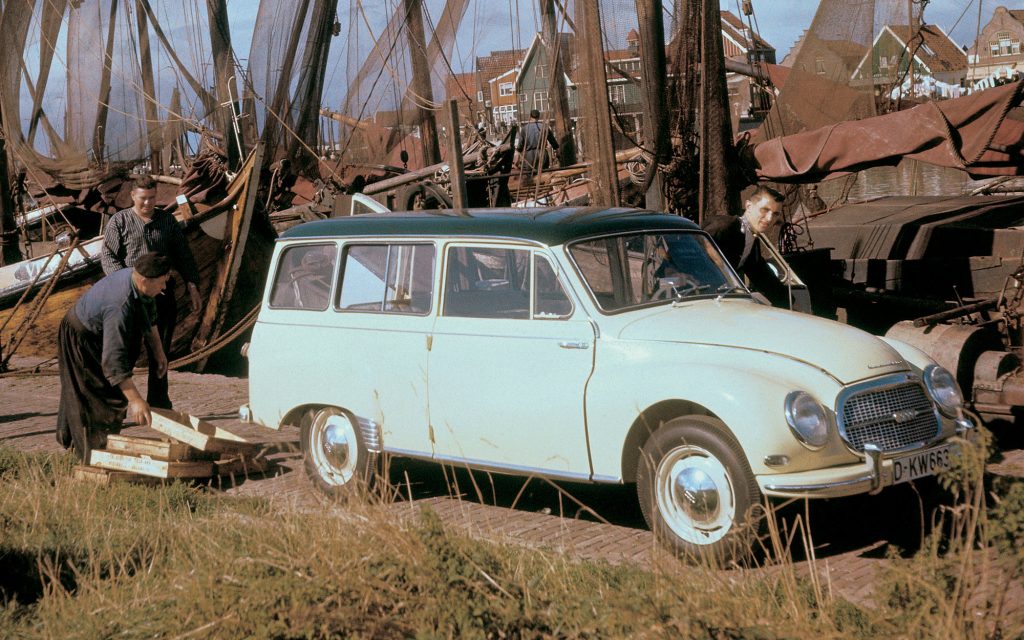

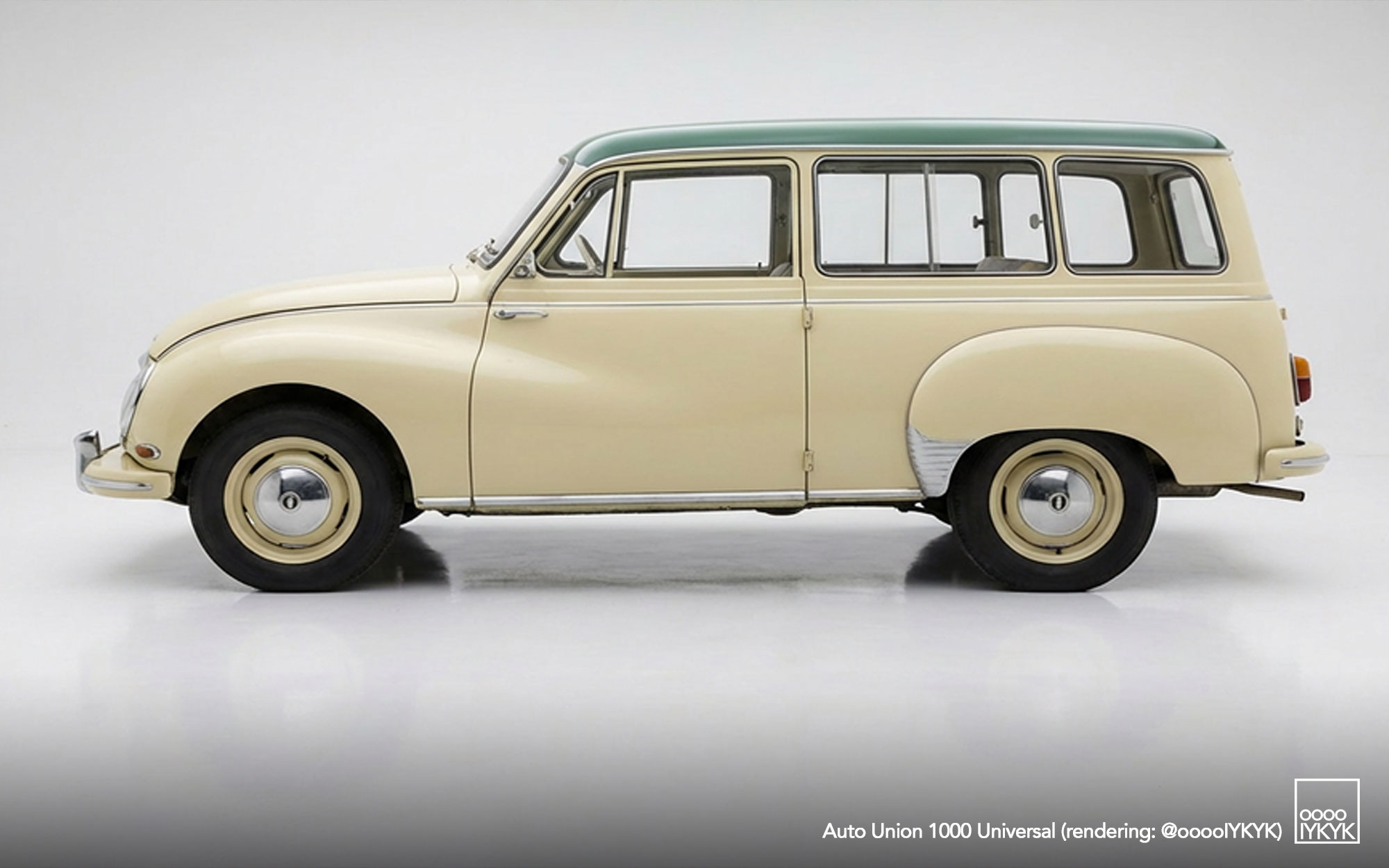

The Auto Union 1000 Universal was the estate derivative of the 1000 sedan, with “Universal” serving as Auto Union’s designation for its wagon body style. It retained the rounded postwar silhouette of the saloon but extended the roofline and incorporated a large rear cargo door. The configuration was a three-door layout—two side doors plus the rear door—with folding rear seating to expand load space.
Like the sedan, the Universal adopted the panoramic wraparound windshield beginning with the 1960 model year, modernizing its appearance while maintaining the same fundamental dimensions and chassis layout.
ENGINEERING & MECHANICAL LAYOUT
The Universal shared the 981 cc three-cylinder two-stroke engine that represented the largest version of this architecture produced by Auto Union. Mounted longitudinally ahead of the front axle with the gearbox integrated into the final drive, the compact layout preserved interior and cargo space within the 2,350 mm wheelbase.
The cooling system mirrored that of the sedan, with the radiator positioned at the rear of the engine bay and a belt-driven fan shaft extending from the front of the engine. As with all Auto Union two-stroke models of the period, the engine required a petrol-oil mixture in the fuel tank and employed separate ignition coils for each cylinder.
CHASSIS & DRIVING CHARACTER
The Universal used a separate chassis with steel bodywork. Front suspension consisted of independent lower wishbones and an upper transverse semi-elliptic spring, while the rear utilized a dead axle supported by a transverse semi-elliptic spring and telescopic dampers. Front-wheel drive provided stable traction on poor road surfaces, an advantage in winter climates and rural regions.
The four-speed manual gearbox incorporated the characteristic freewheel mechanism, reducing engine braking during overrun and contributing to smoother drivability. Steering was rack and pinion, and braking was handled by hydraulic drums operating through a single circuit.
MARKET POSITION & LEGACY
Within the 1000 range, the Universal filled the practical role alongside two- and four-door sedans and the sport-oriented SP variants. It was marketed to buyers prioritizing load capacity and dependable traction rather than outright performance.
Production transitioned from Düsseldorf to Ingolstadt beginning in 1961, and the Universal concluded production with the rest of the 1000 series in 1963. Today, surviving examples are comparatively rare and are valued for their combination of two-stroke engineering, front-wheel-drive practicality and distinctive late-1950s design.
