What: Audi V8 Avant 3.6 prototype
Model Family: V8 (D1, type 4C)
Debuted: N/A
Year: 1989
Registration Plate: IN:NJ 82
Status: Audi Tradition collection
Number Produced: 1
Model / Generation Code(s): type 4C
Chassis / Matrix: D1
Engine: V8, 3.6-liter, 3,596 cm³
Transmission: 5-speed manual
Drivetrain: Permanent quattro all-wheel drive (50:50 torque split)
Power: 250 hp (184 kW)
Peak Torque: 340 Nm
Weight: Approx. 1,790–1,800 kg
Acceleration (0-100 km / 62 mph: unknown
Length: 4,874 mm
Body style: 5-door luxury station wagon
Exterior Paint Color: Deep dark green (Porsche-Piëch family heritage color)
Wheels: Two-piece BBS mesh-style alloy wheels
RELATED
Concept Cars:
Road Cars: V8 (D1, type 4C)
Race Cars: V8 quattro DTM
OVERVIEW
The Audi V8 Avant is a one-off luxury station wagon constructed in 1989 during a pivotal period for Audi’s rise into the premium segment. Built at the insistence of Ferdinand Piëch as a fully functional, road-approved family car for his wife Ursula Piëch, it remains one of the most unusual and storied vehicles ever produced by the brand. Today, the car is preserved by Audi Tradition and is regarded as a near-mythic artifact of an era defined by bold engineering and unconventional ideas.
BACKGROUND & DEVELOPMENT
The Audi V8 (D11), introduced at the 1988 Paris Motor Show, represented Ingolstadt’s first true flagship sedan. Built on the C3-based D-platform and fully galvanized, it allowed Audi to position itself alongside Mercedes-Benz and BMW in the late 1980s. The model debuted with a 3.6-liter V8 producing 250 hp (184 kW) and later gained a 4.2-liter unit rated at 280 hp (206 kW). It was Audi’s first eight-cylinder engine since the Second World War. Quattro all-wheel drive, automatic transmission, and—beginning in 1990—a 5-speed manual option underscored the V8’s Autobahn authority.
Audi offered the 200 Avant as its premium wagon, but no estate version of the V8 was planned for series production. Internally, Piëch believed a luxury station wagon could demonstrate both brand ambition and technical capability. Against prevailing corporate logic, he ordered a single V8 Avant to be built as a road-ready, fully engineered vehicle rather than a simple design mock-up.
DESIGN & CONSTRUCTION

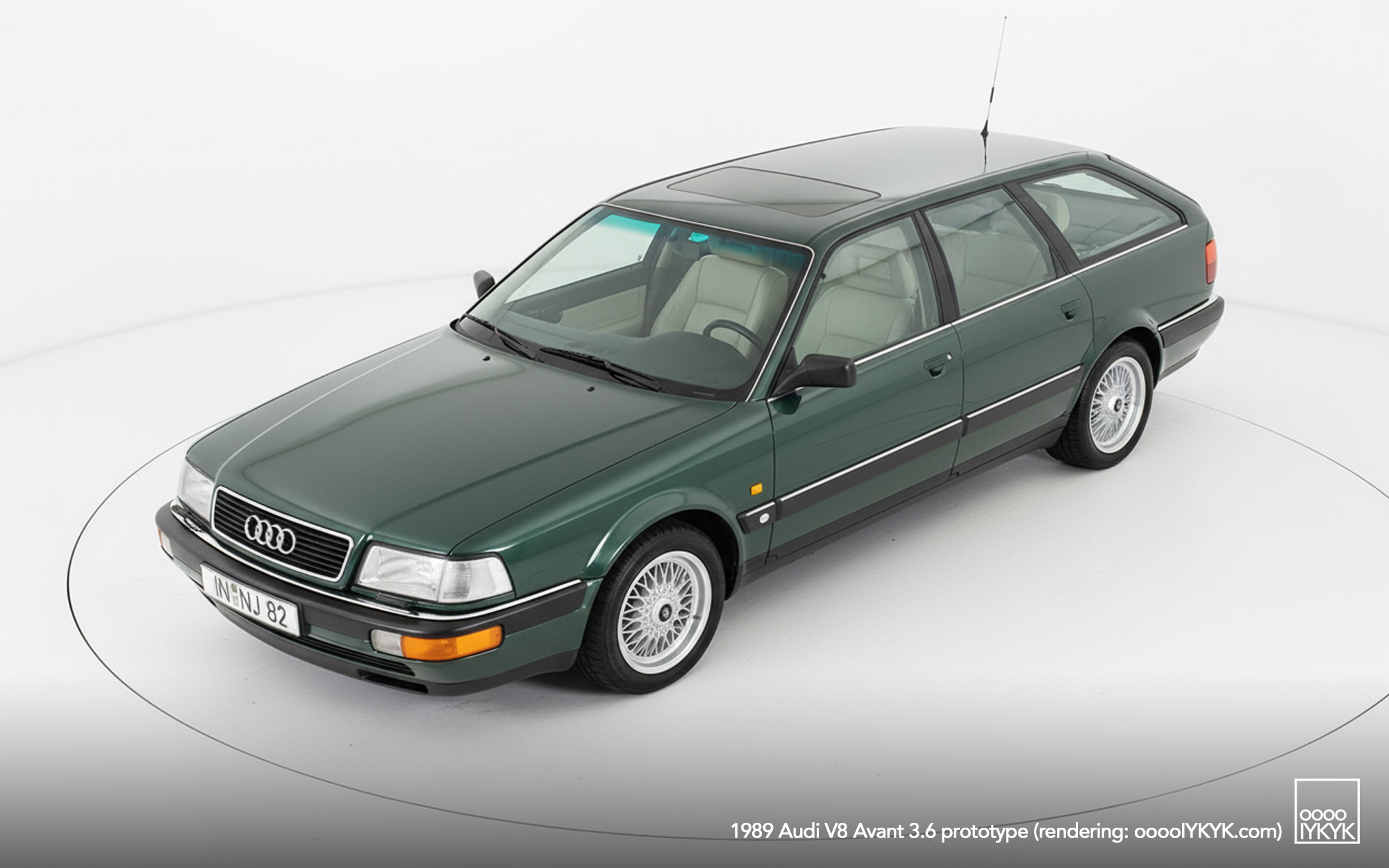

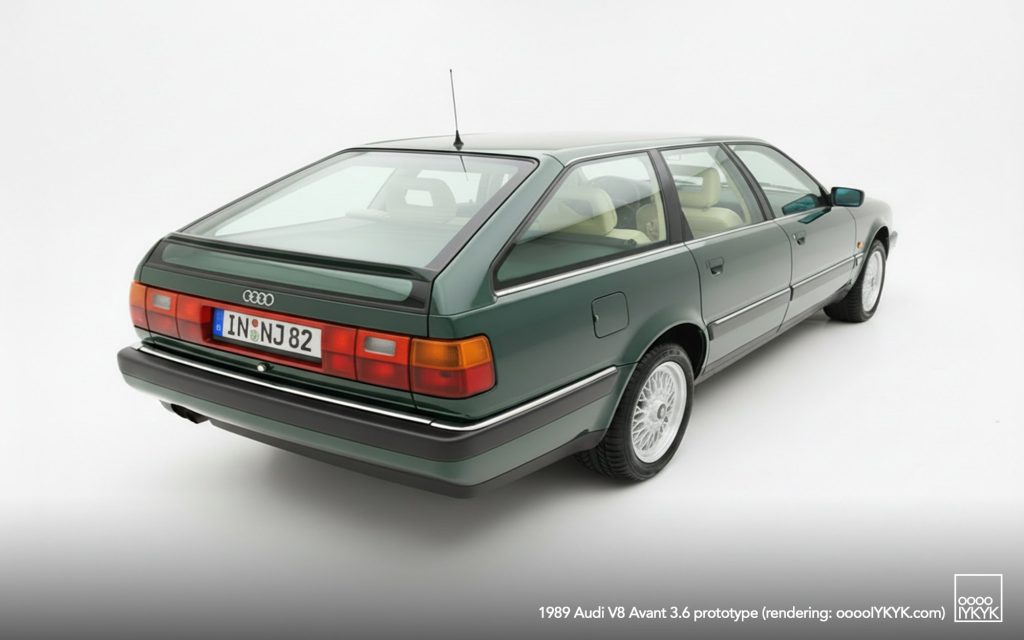

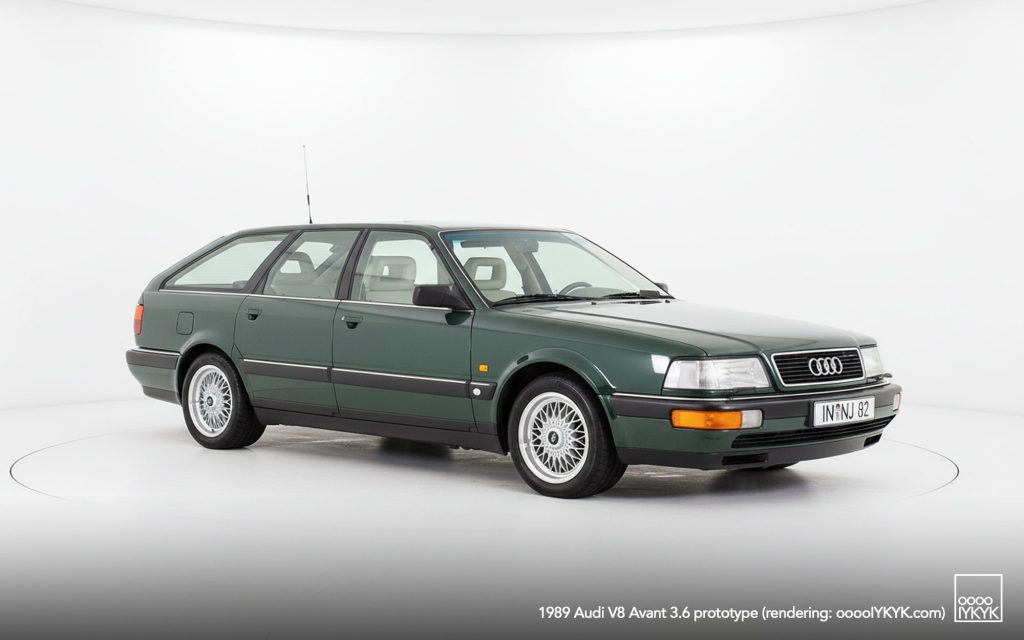

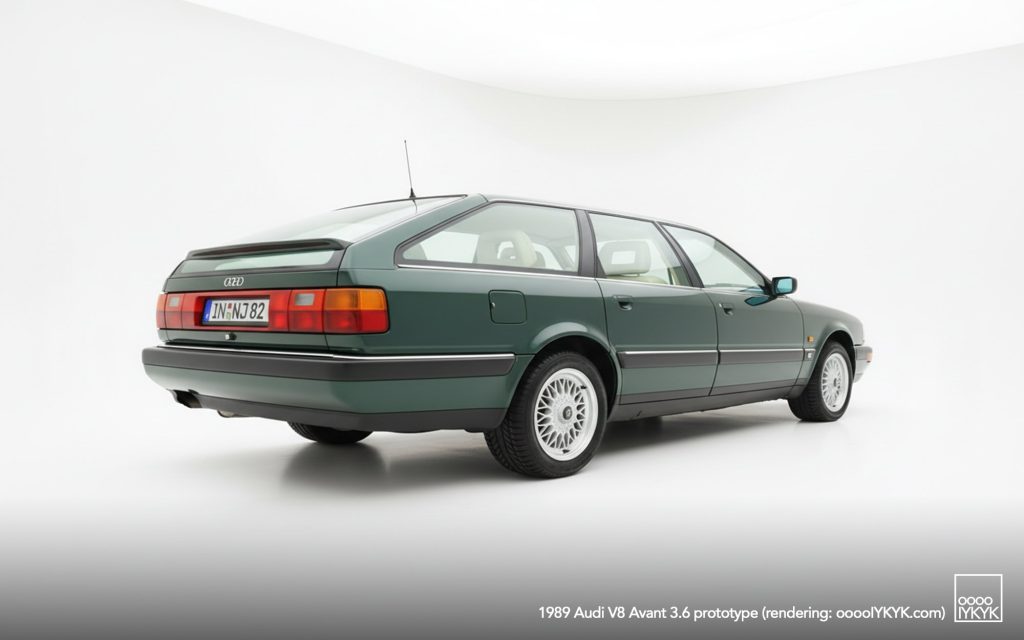

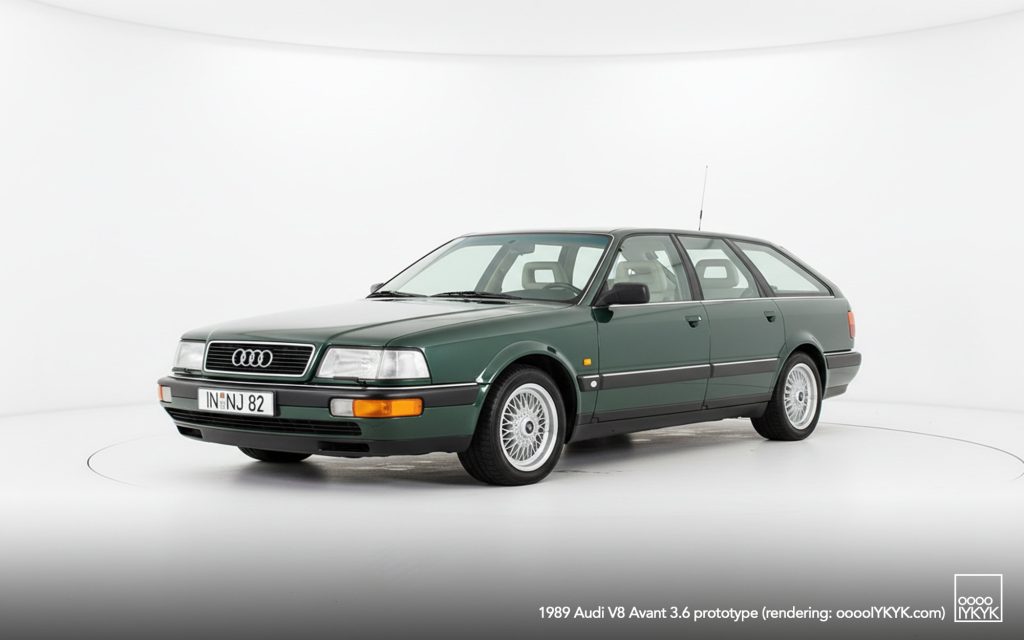

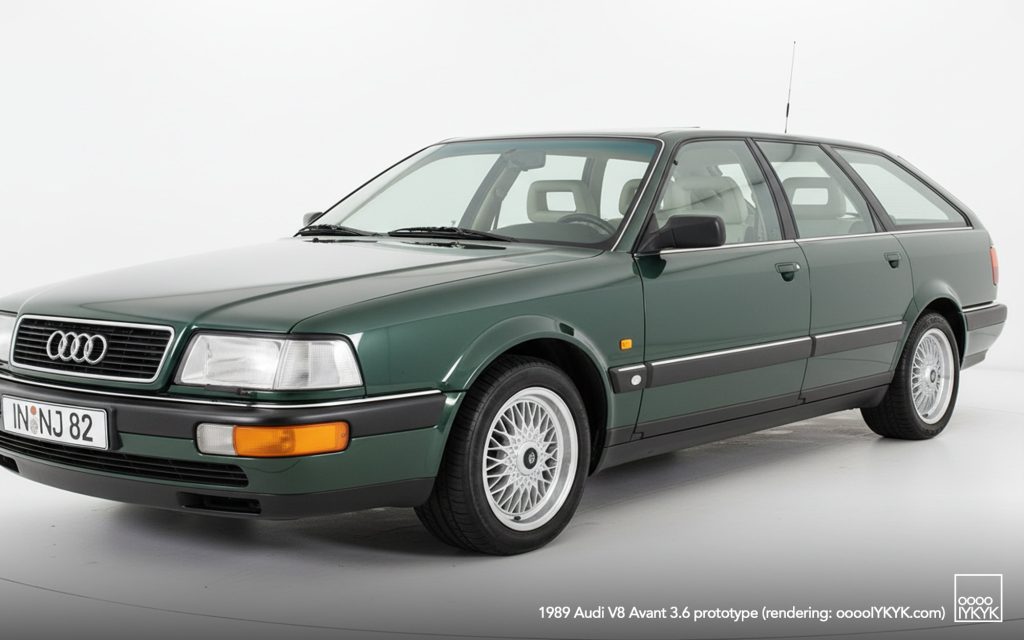

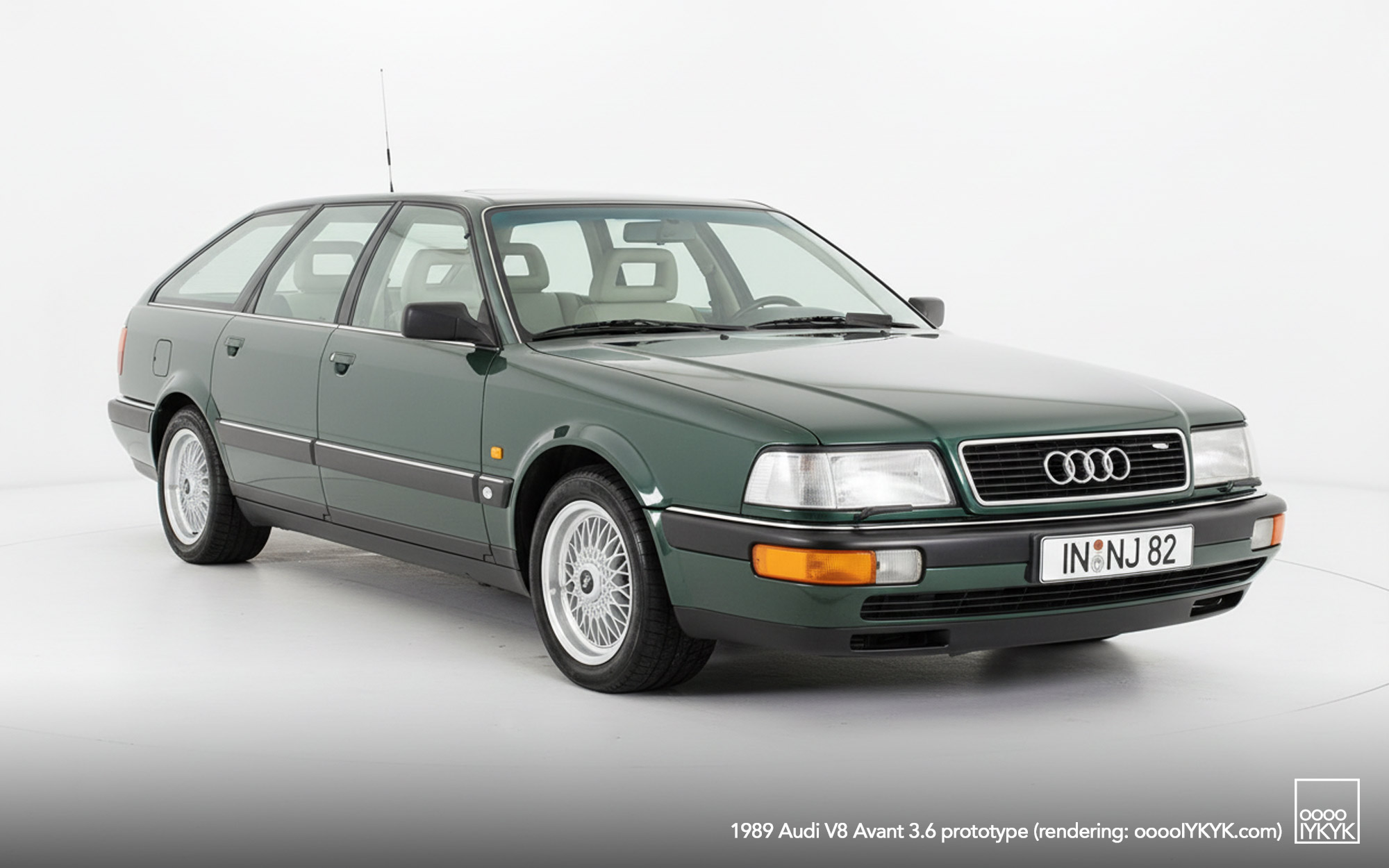

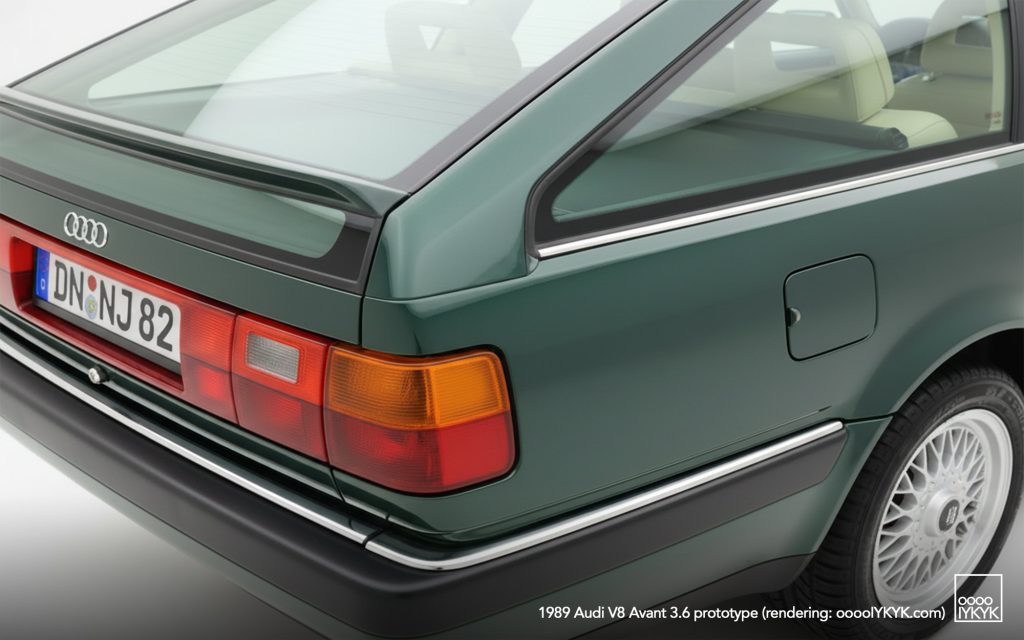

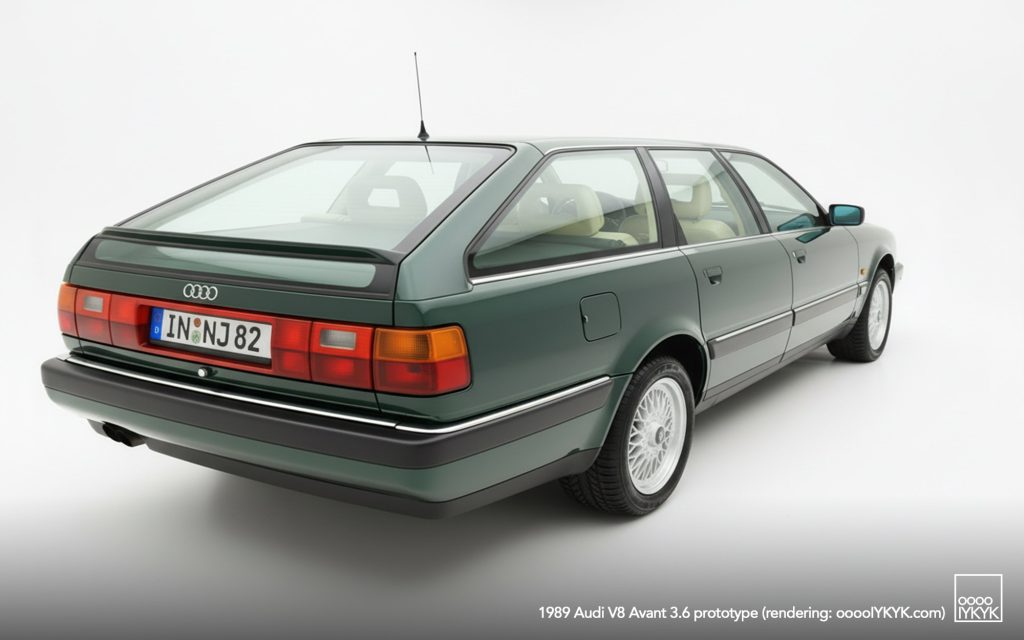

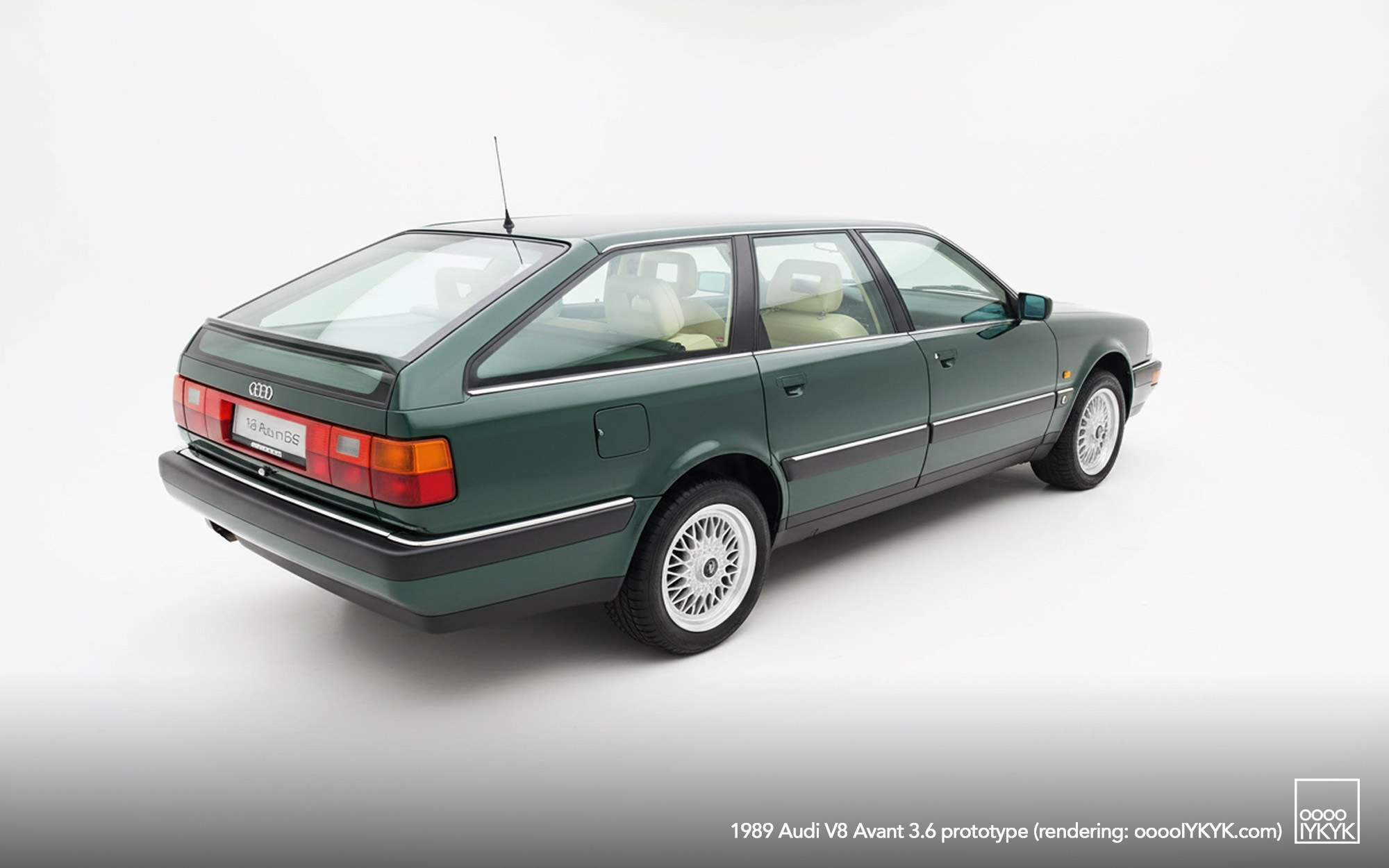

The V8 Avant was developed on the body shell of the Audi 200 Avant and measured 4.874 meters in length. The tailgate was sourced directly from the 200 Avant, while the front and rear end reflected the V8 sedan’s unique styling elements. The body was painted a deep dark green, a color traditionally reserved for special vehicles within the Porsche-Piëch family. Two-piece BBS mesh-style wheels completed the exterior.

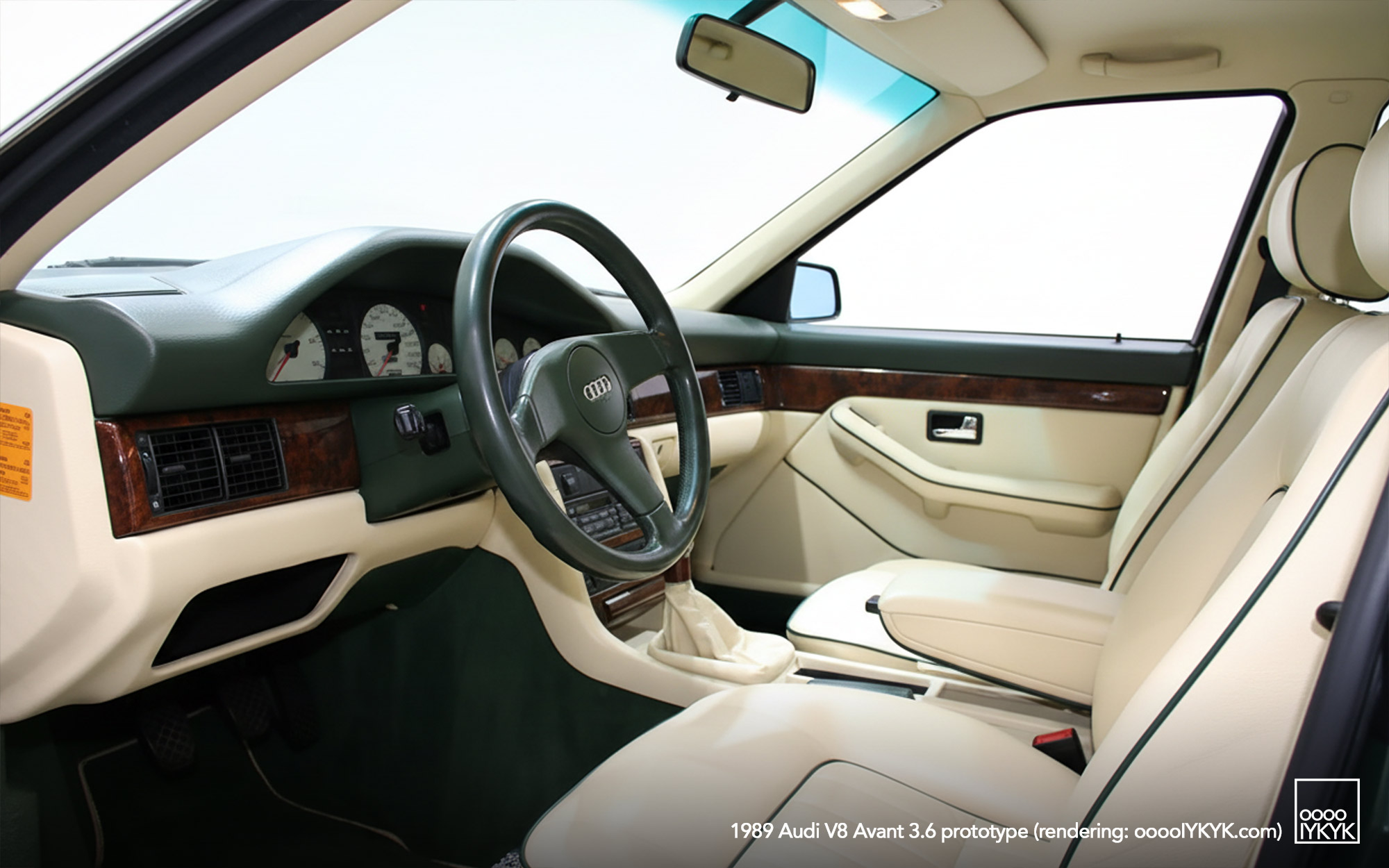

The interior received Audi’s “Classic Line” luxury package, an early precursor to bespoke customization. Magnolia-colored Connolly leather upholstery with green piping covered the seats and interior panels, complemented by a quilted beige leather headliner. Additional touches included wood veneers, a split-folding rear seat, coordinated green trim plastics, and a removable luggage cover. The result was a hand-finished cabin reminiscent of a luxury atelier rather than a conventional prototype.
PERFORMANCE & USE
Power came from the standard 3,596 cm³ V8 rated at 250 hp (184 kW) and 340 Nm, paired with a 5-speed manual transmission—unusual for a luxury estate in 1989. With quattro all-wheel drive distributing torque 50:50, the 1,790 kg wagon reached an official top speed of 240 km/h, though period rumors suggested it could exceed that figure with ease.
Although conceived to explore industrial feasibility, the model never progressed toward mass production. Manufacturing constraints and market assumptions of the time rendered the project unviable. Nevertheless, the sole example served as a daily family car for nearly a decade, used by Ursula Piëch without ceremony and proving both reliable and practical.
OTHER V8 AVANT PROJECTS
Interest in a V8-based luxury wagon extended beyond Audi’s own effort. In 1992, coachbuilder Lorenz & Rankel created a separate V8 Avant study in cooperation with Audi, notable for its plexiglass windows and clear status as a design exercise rather than a road-going model. Comparable experiments during the period included high-end estate conversions by tuners such as Zender and AMG.
LEGACY & INFLUENCE
The V8 Avant remained a one-off, but the V8 sedan paved the way for the 1994 Audi A8 (D2), which advanced the brand’s luxury ambitions through its pioneering aluminum space frame. Although the A8 was launched exclusively as a sedan, the idea of a large Audi Avant persisted. In 2001, Audi revisited the concept with the Avantissimo, a design study powered by a twin-turbo 4.2-liter V8 producing 430 hp (316 kW) and 600 Nm. Like the V8 Avant, it showcased technical potential without entering production.
PUBLIC APPEARANCES & PRESERVATION

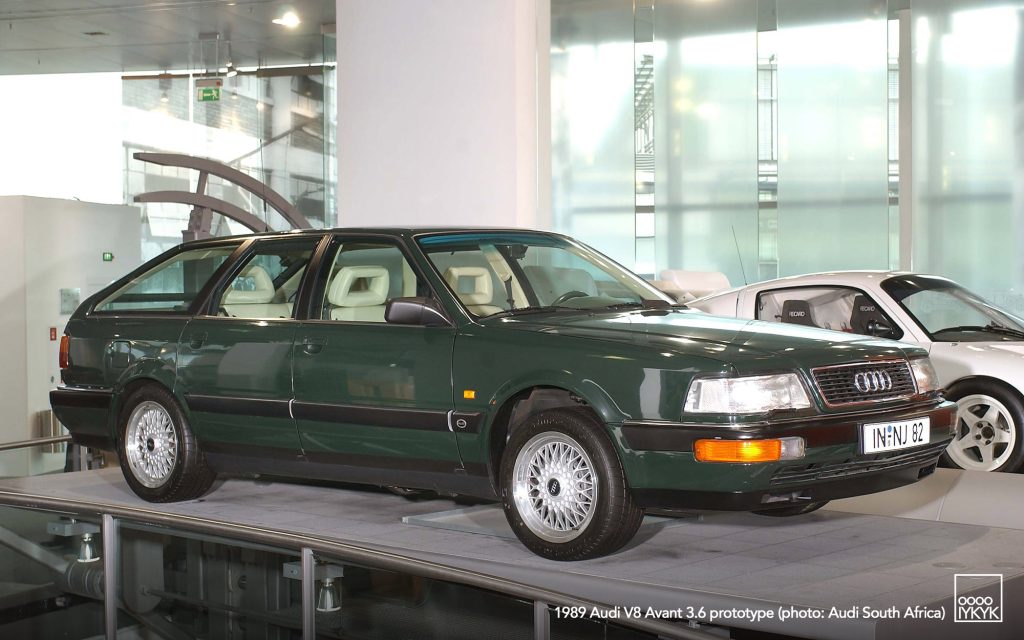

Now part of the Audi Tradition collection, the V8 Avant is rarely shown but has appeared at key brand events. It was displayed at the opening of the Audi museum mobile in 2000, at the Audi Forum Ingolstadt, in the special exhibition “Schöne Kombis heißen Avant,” and at Techno Classica 2013. When not displayed, it remains stored in Audi’s internal vehicle depot.
Often described as “the car that should not have existed,” the 1989 Audi V8 Avant stands as a testament to Piëch’s willingness to challenge convention. Combining luxury, engineering rigor, and an unconventional brief, it has become one of the most intriguing single-build vehicles in Audi’s history.
SOURCES:
1989 Audi V8 Avant – A Unique Model for Ursula Piëch – 4legend.com
Audi V8 Avant, la wagon veloce (e unica) che non conoscevi – Veloce
Audi V8 Avant: Piëch’s Secret Station Wagon Dream – Auto Zeitung
